LTC2323HUFD-12#PBF
  • Share:

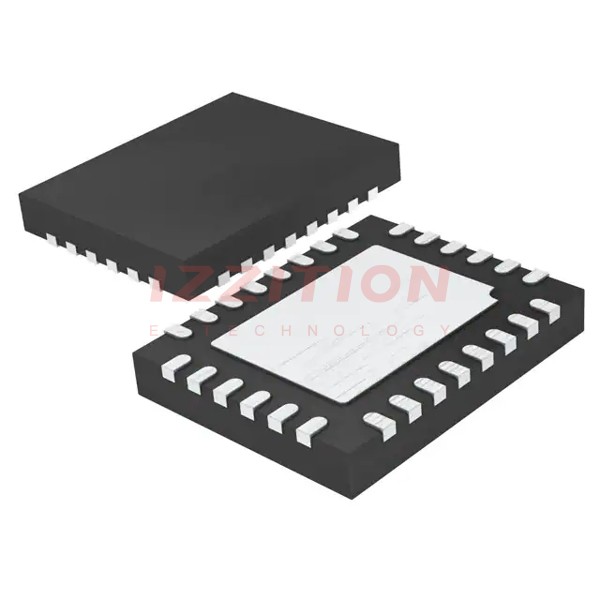

Analog Devices Inc. LTC2323HUFD-12#PBF

Manufacturer No:
LTC2323HUFD-12#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 12BIT SAR 28QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2323-12, produced by Analog Devices Inc., is a high-performance, dual 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This device is designed for high-speed data acquisition and features differential inputs with a wide input common mode range. Operating from a single 3.3 V or 5 V supply, it is ideal for applications requiring a wide dynamic range and high common mode rejection.

Key Specifications

Parameter Value Unit
Resolution 12-bit + sign
Sampling Rate 5 Msps
Differential Input Range 8 VP-P
Integral Nonlinearity (INL) ±0.5 LSB (typ)
Signal-to-Noise Ratio (SNR) 73 dB (typ) at fIN = 2 MHz
Total Harmonic Distortion (THD) –85 dB (typ) at fIN = 2 MHz
Operating Temperature –40°C to +125°C
Supply Voltage 3.3 V or 5 V
I/O Voltage 1.8 V to 2.5 V
Package 28-Lead QFN (4mm x 5mm x 0.75mm)
Power Dissipation 38 mW/Ch (typ)

Key Features

  • High-speed throughput rate of 5 Msps
  • Guaranteed 12-bit resolution with no missing codes
  • Wide input common mode range and 8 VP-P differential input range
  • Low drift internal reference (2.048 V or 4.096 V)
  • CMOS or LVDS SPI-compatible serial I/O
  • Low power dissipation of 38 mW per channel (typical)
  • Compact 28-lead QFN package (4mm x 5mm x 0.75mm)
  • Guaranteed operation up to 125°C

Applications

  • High-speed data acquisition systems
  • Communications
  • Remote data acquisition
  • Imaging
  • Optical networking
  • Multiphase motor control

Q & A

  1. What is the resolution of the LTC2323-12 ADC?

    The LTC2323-12 has a resolution of 12 bits + sign.

  2. What is the sampling rate of the LTC2323-12?

    The sampling rate is 5 Msps.

  3. What is the differential input range of the LTC2323-12?

    The differential input range is 8 VP-P.

  4. What is the typical integral nonlinearity (INL) of the LTC2323-12?

    The typical INL is ±0.5 LSB.

  5. What is the signal-to-noise ratio (SNR) of the LTC2323-12 at 2 MHz input frequency?

    The SNR is 73 dB (typical) at fIN = 2 MHz.

  6. What is the total harmonic distortion (THD) of the LTC2323-12 at 2 MHz input frequency?

    The THD is –85 dB (typical) at fIN = 2 MHz.

  7. What are the operating temperature ranges for the LTC2323-12?

    The operating temperature range is –40°C to +125°C.

  8. What are the supply voltage options for the LTC2323-12?

    The supply voltage options are 3.3 V or 5 V.

  9. What is the package type and size of the LTC2323-12?

    The package is a 28-lead QFN (4mm x 5mm x 0.75mm).

  10. What is the typical power dissipation per channel for the LTC2323-12?

    The typical power dissipation is 38 mW per channel.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):5M
Number of Inputs:2
Input Type:Differential, Pseudo-Differential
Data Interface:LVDS - Serial, Serial
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:2
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:3.13V ~ 3.47V, 5V
Voltage - Supply, Digital:3.13V ~ 3.47V, 5V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 125°C
Package / Case:28-WFQFN Exposed Pad
Supplier Device Package:28-QFN (4x5)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$22.21
36

Please send RFQ , we will respond immediately.
