Overview
The LTC2321IUFD-16#PBF is a high-performance, dual 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices, Inc. This component is designed to operate at high speeds with low noise and features differential inputs along with a wide input common mode range. It is ideal for applications requiring a wide dynamic range and high common mode rejection, such as industrial automation, medical imaging, and telecommunications.
Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Series | LTC2321-16 |
| Mounting Style | SMD/SMT | Resolution | 16 bit |
| Number of Channels | 2 Channel | Sampling Rate | 2 MS/s |
| Input Type | Differential/Pseudo-Differential/Single-Ended | Architecture | SAR |

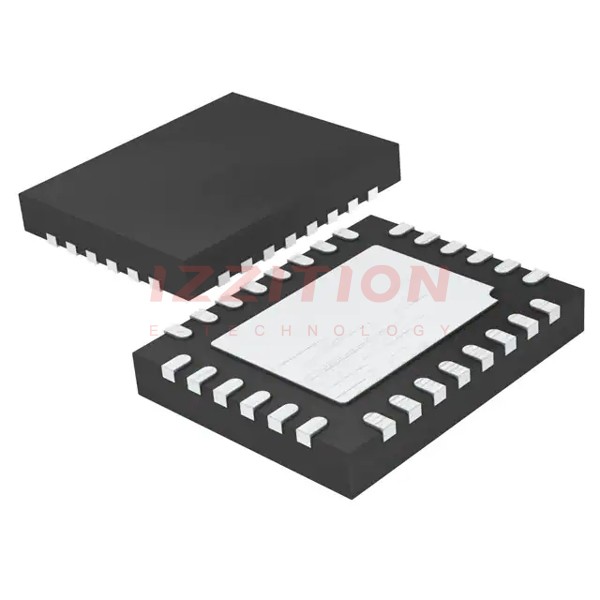

| Analog Supply Voltage | 3.3 V, 5 V | Packaging | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) |
| DNL - Differential Nonlinearity | 0.4 LSB | Gain Error | 1 LSB |
| INL - Integral Nonlinearity | ±4 LSB (Typ) | Pd - Power Dissipation | 31 mW per channel |
| Reference Type | Internal (2.048V or 4.096V) | SFDR - Spurious Free Dynamic Range | 88 dB |
| SNR (Typ) at fIN = 500kHz | 81 dB | THD (Typ) at fIN = 500kHz | -90 dB |
Key Features
- Fast Conversion Rate with Wide Range: The LTC2321-16 operates at a sampling rate of 2 MS/s per channel with no cycle latency.
- No Cycle Latency: Ensures excellent performance in high-speed applications.
- Sufficient Dynamic Range: Features an 8V P-P differential input range, ensuring high common mode rejection.
- Fully Differential Inputs with Low Power: Dissipates only 31 mW per channel and offers nap and sleep modes to reduce power consumption to 5μW.
- High Accuracy and Low Distortion: Achieves ±4LSB INL typical, no missing codes at 16 bits, and 81dB SNR.
- Excellent Linearity and Resolution: Guaranteed 16-bit resolution with high linearity.
- Low Drift Internal Reference: Onboard 2.048V or 4.096V temperature-compensated reference with 20ppm/°C max drift.
- High Speed SPI-Compatible Serial Interface: Supports CMOS or LVDS.
Applications
The LTC2321IUFD-16#PBF is versatile and suitable for a variety of high-speed applications, including:
- Industrial Automation: For precise measurement and control systems.
- Medical Imaging: For high-resolution imaging and diagnostic equipment.
- Telecommunications: For signal processing and data acquisition in communication systems.
Q & A
- Q: What is the warranty period for the LTC2321IUFD-16#PBF?
A: The warranty period is 1 year, covering any defects in materials and workmanship under normal use.
- Q: How does Ovaga ensure the authenticity of LTC2321IUFD-16#PBF from Analog Devices, Inc.?
A: Ovaga rigorously tests and verifies the credentials of original manufacturers and authorized agents, ensuring high product quality standards.
- Q: How can I find detailed information about the LTC2321IUFD-16#PBF, such as application notes and factory information?
A: You can use Ovaga's search engine, visit the Analog Devices, Inc. information page, or refer to the datasheet available on the official website.
- Q: Are the price and stock information for LTC2321IUFD-16#PBF on Ovaga's platform accurate?
A: Inventory levels can fluctuate and may not be updated in real time. It is recommended to confirm stock availability and final pricing with an Ovaga salesperson or customer service representative.
- Q: What is the power consumption of the LTC2321IUFD-16#PBF?
A: The LTC2321IUFD-16#PBF dissipates 31 mW per channel and offers nap and sleep modes to reduce power consumption to 5μW during inactive periods).
- Q: What is the input range of the LTC2321IUFD-16#PBF?
A: The LTC2321IUFD-16#PBF has an 8V P-P differential input range, ensuring a wide dynamic range with high common mode rejection).
- Q: What type of serial interface does the LTC2321IUFD-16#PBF support?
A: The LTC2321IUFD-16#PBF supports a high-speed SPI-compatible serial interface that can operate with CMOS or LVDS).
- Q: What is the resolution and accuracy of the LTC2321IUFD-16#PBF?
A: The LTC2321IUFD-16#PBF achieves ±4LSB INL typical, no missing codes at 16 bits, and 81dB SNR).
- Q: What is the operating temperature range of the LTC2321IUFD-16#PBF?
A: The LTC2321IUFD-16#PBF is guaranteed to operate up to 125°C).
- Q: What type of packaging does the LTC2321IUFD-16#PBF come in?
A: The LTC2321IUFD-16#PBF comes in a 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) package).
