LTC2312HTS8-14
  • Share:

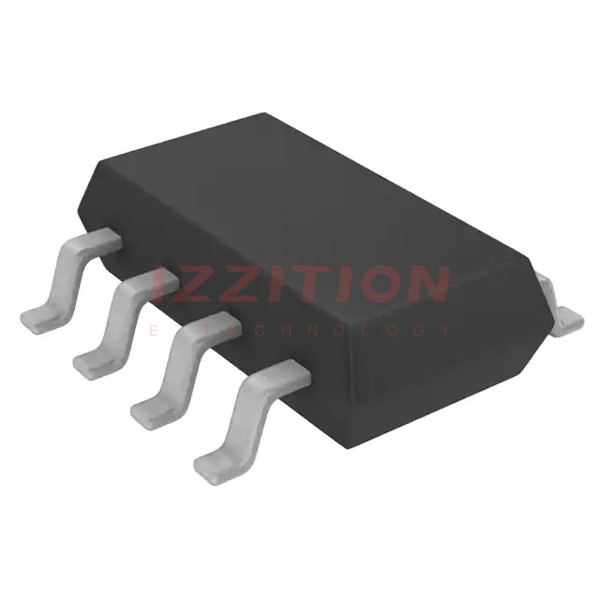

Analog Devices Inc. LTC2312HTS8-14

Manufacturer No:
LTC2312HTS8-14
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 14BIT SAR TSOT23-8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2312HTS8-14 is a 14-bit, 500ksps serial sampling analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for high-speed, low-power applications and operates from a single 3V or 5V supply, drawing only 3.2mA. It features an integrated low drift reference and reference buffer, providing a high-performance and space-saving solution. The ADC achieves outstanding AC performance with 77dB SINAD and -85dB THD while sampling at 500ksps, making it ideal for compact, high-speed systems.

Key Specifications

Specification Value
Number of Bits 14
Sampling Rate 500ksps
Input Type Single Ended
Data Interface SPI
Configuration S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 1
Architecture SAR (Successive Approximation Register)
Reference Type Internal
Voltage - Supply, Analog 2.7 V ~ 3.6 V, 4.75 V ~ 5.25 V
Voltage - Supply, Digital 2.7 V ~ 3.6 V, 4.75 V ~ 5.25 V
Package TSOT-23-8

Key Features

  • High-speed SPI-compatible serial interface supporting 1.8V, 2.5V, 3V, and 5V logic.
  • Low power consumption: 9mW at 500ksps with a 3V supply and 15mW with a 5V supply.
  • Low drift internal reference and reference buffer (20ppm/°C maximum).
  • Excellent dynamic performance: 77dB SINAD and -85dB THD.
  • No cycle latency; conversion data output directly onto the SDO pin.
  • Automatic nap mode and sleep mode with < 1µA typical supply current.
  • Separate 1.8V to 5V digital I/O supply range.

Applications

  • Communication systems
  • High-speed data acquisition
  • Handheld terminal interfaces
  • Medical imaging
  • Uninterrupted power supplies
  • Battery-operated systems
  • Automotive systems

Q & A

  1. What is the resolution of the LTC2312HTS8-14 ADC?

    The LTC2312HTS8-14 is a 14-bit ADC.

  2. What is the sampling rate of the LTC2312HTS8-14?

    The sampling rate is 500ksps.

  3. What type of input does the LTC2312HTS8-14 support?

    The LTC2312HTS8-14 supports single-ended inputs.

  4. What is the data interface of the LTC2312HTS8-14?

    The data interface is SPI-compatible.

  5. What is the power consumption of the LTC2312HTS8-14 at 500ksps with a 3V supply?

    The power consumption is 9mW at 500ksps with a 3V supply.

  6. Does the LTC2312HTS8-14 have an internal reference?

    Yes, it has an internal reference with a low drift of 20ppm/°C maximum.

  7. What are the typical applications of the LTC2312HTS8-14?

    Typical applications include communication systems, high-speed data acquisition, medical imaging, and automotive systems.

  8. How does the LTC2312HTS8-14 manage power consumption during idle periods?

    The device automatically enters nap mode after conversions and has a sleep mode with < 1µA typical supply current.

  9. What is the package type of the LTC2312HTS8-14?

    The package type is TSOT-23-8.

  10. Does the LTC2312HTS8-14 support multiple logic levels for the digital interface?

    Yes, it supports 1.8V, 2.5V, 3V, and 5V logic levels.

Product Attributes

Number of Bits:14
Sampling Rate (Per Second):500k
Number of Inputs:1
Input Type:Single Ended
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:Internal
Voltage - Supply, Analog:2.7V ~ 3.6V, 4.75V ~ 5.25V
Voltage - Supply, Digital:2.7V ~ 3.6V, 4.75V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 125°C
Package / Case:SOT-23-8 Thin, TSOT-23-8
Supplier Device Package:TSOT-23-8
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
71

Please send RFQ , we will respond immediately.

Same Series
DD15S10LVLS/AA
DD15S10LVLS/AA
CONN D-SUB HD RCPT 15POS CRIMP
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVL0/AA
DD15S20LVL0/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC47W1S100E30
CBC47W1S100E30
CONN D-SUB RCPT 47POS CRIMP
DD44S32S60T20
DD44S32S60T20
CONN D-SUB HD RCPT 44P VERT SLDR
DD15S20J0S/AA
DD15S20J0S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10HV3S/AA
CBC9W4S10HV3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2000X/AA
DD26S2000X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JV3S/AA
DD15S20JV3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S20000
DD26S20000
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0T2X
DD26S2S0T2X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V30/AA
DD26S2S50V30/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number LTC2312HTS8-14 LTC2312ITS8-14 LTC2313HTS8-14 LTC2314HTS8-14 LTC2312CTS8-14 LTC2312HTS8-12
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Number of Bits 14 14 14 14 14 12
Sampling Rate (Per Second) 500k 500k 2.5M 4.5M 500k 500k
Number of Inputs 1 1 1 1 1 1
Input Type Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended
Data Interface SPI SPI SPI SPI SPI SPI
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1 1 1
Architecture SAR SAR SAR SAR SAR SAR
Reference Type Internal Internal Internal Internal Internal Internal
Voltage - Supply, Analog 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V
Voltage - Supply, Digital 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V 2.7V ~ 3.6V, 4.75V ~ 5.25V
Features - - - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 85°C -40°C ~ 125°C -40°C ~ 125°C 0°C ~ 70°C -40°C ~ 125°C
Package / Case SOT-23-8 Thin, TSOT-23-8 SOT-23-8 Thin, TSOT-23-8 SOT-23-8 Thin, TSOT-23-8 SOT-23-8 Thin, TSOT-23-8 SOT-23-8 Thin, TSOT-23-8 SOT-23-8 Thin, TSOT-23-8
Supplier Device Package TSOT-23-8 TSOT-23-8 TSOT-23-8 TSOT-23-8 TSOT-23-8 TSOT-23-8
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
