Overview

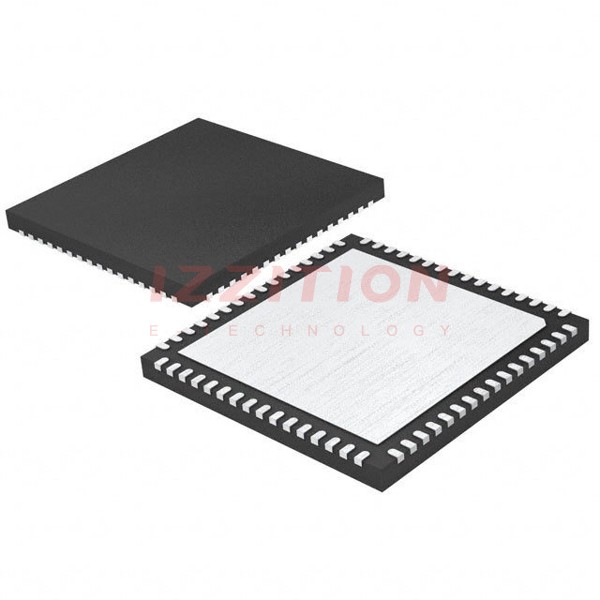

The LTC2288IUP#PBF is a high-performance, dual 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for applications requiring simultaneous sampling and high-speed data conversion. The LTC2288 features a pipelined architecture, supporting sampling rates of up to 65 million samples per second (MSPS). It is packaged in a 64-lead QFN (9x9 mm) package with an exposed pad, making it suitable for a variety of high-speed data acquisition systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | LTC2288IUP#PBF |
| Number of Bits | 10 |
| Number of A/D Converters | 2 |
| Sampling Rate (MSPS) | 65 |
| Supply Voltage (Digital and Analog) | 2.7 V to 3.4 V |
| Operating Temperature | -40°C to 85°C |
| Package Type | 64-QFN (9x9 mm) with Exposed Pad |
| Input Type | Differential, Single-Ended |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free / RoHS Status | Lead Free / RoHS Compliant |
Key Features
- Simultaneous Sampling: Both ADCs sample the input signals simultaneously, which is crucial for applications requiring synchronized data acquisition.
- Pipelined Architecture: The pipelined architecture allows for high-speed data conversion with minimal latency.
- High Sampling Rate: Supports sampling rates up to 65 MSPS, making it suitable for high-speed applications.
- Dual 10-Bit ADCs: Each ADC is 10 bits, providing a good balance between resolution and speed.
- Flexible Input Options: Accepts both differential and single-ended inputs, offering flexibility in system design.
- Low Power Consumption: Operates within a supply voltage range of 2.7 V to 3.4 V, which helps in reducing power consumption.
Applications
- High-Speed Data Acquisition Systems: Ideal for applications such as medical imaging, radar systems, and high-speed test and measurement equipment.
- Communications Systems: Suitable for use in wireless communication systems, including base stations and high-speed modems.
- Industrial Automation: Used in industrial control systems that require precise and fast data conversion.
- Aerospace and Defense: Applied in various military and aerospace applications where high-speed data acquisition is critical.
Q & A
- What is the sampling rate of the LTC2288IUP#PBF?
The LTC2288IUP#PBF has a sampling rate of up to 65 million samples per second (MSPS).
- What is the package type of the LTC2288IUP#PBF?
The LTC2288IUP#PBF is packaged in a 64-lead QFN (9x9 mm) package with an exposed pad.
