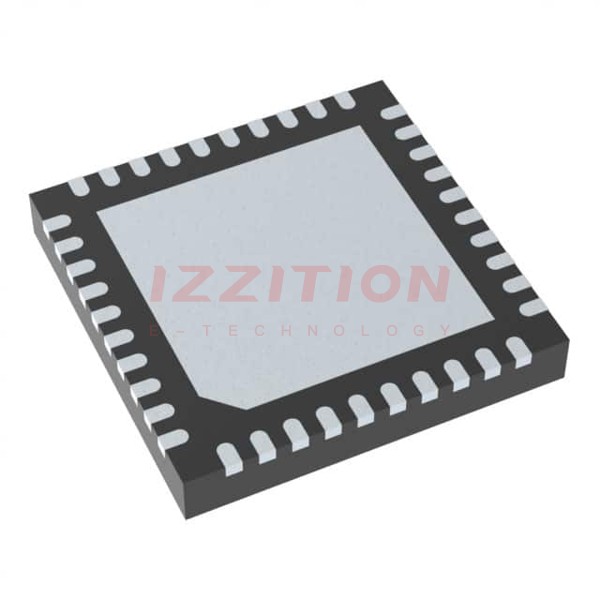

LTC2264CUJ-12
  • Share:

Analog Devices Inc. LTC2264CUJ-12

Manufacturer No:
LTC2264CUJ-12
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 12BIT PIPELINED 40QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2264CUJ-12 is a 2-channel, simultaneous sampling 12-bit analog-to-digital converter (ADC) designed by Analog Devices Inc. This component is optimized for digitizing high-frequency, wide dynamic range signals, making it ideal for demanding communications applications. It features exceptional AC performance, including a signal-to-noise ratio (SNR) of 71 dB and a spurious free dynamic range (SFDR) of 90 dB. The ultralow jitter of 0.15 psRMS enables undersampling of IF frequencies with excellent noise performance.

Key Specifications

ParameterValueUnits
Resolution12-bit
Sampling Rate40 Msps
Supply Voltage1.7V to 1.9VV
Package Type40-QFN Exposed Pad
SNR71 dB
SFDR90 dB
Jitter0.15 psRMS
Input Voltage Range1 Vpp to 2 Vpp
Full Power Bandwidth800 MHz
Power Consumption112 mW (total), 56 mW per channelmW
Digital OutputsSerial LVDS, 1 or 2 bits per channel

Key Features

  • Simultaneous sampling of two channels
  • Low power consumption: 112 mW total, 56 mW per channel
  • Single 1.8V supply voltage
  • Serial LVDS outputs with optional internal termination and adjustable output levels
  • Selectable input ranges: 1 Vpp to 2 Vpp
  • Shutdown and nap modes for power management
  • Serial SPI port for configuration
  • Pin compatible with 14-bit and 12-bit versions

Applications

  • Communications and cellular base stations
  • Software-defined radios
  • Portable medical imaging
  • Multichannel data acquisition
  • Non-destructive testing

Q & A

  1. What is the resolution of the LTC2264CUJ-12 ADC?
    The LTC2264CUJ-12 has a resolution of 12 bits.
  2. What is the sampling rate of the LTC2264CUJ-12?
    The sampling rate is 40 Msps.
  3. What is the supply voltage range for the LTC2264CUJ-12?
    The supply voltage range is from 1.7V to 1.9V.
  4. What type of package does the LTC2264CUJ-12 come in?
    The LTC2264CUJ-12 comes in a 40-QFN Exposed Pad package.
  5. What is the SNR and SFDR of the LTC2264CUJ-12?
    The SNR is 71 dB and the SFDR is 90 dB.
  6. What is the jitter performance of the LTC2264CUJ-12?
    The jitter is 0.15 psRMS.
  7. What are the input voltage ranges for the LTC2264CUJ-12?
    The input voltage ranges are from 1 Vpp to 2 Vpp.
  8. What is the full power bandwidth of the LTC2264CUJ-12?
    The full power bandwidth is 800 MHz.
  9. How much power does the LTC2264CUJ-12 consume?
    The total power consumption is 112 mW, with 56 mW per channel.
  10. What type of digital outputs does the LTC2264CUJ-12 have?
    The digital outputs are serial LVDS, with options for 1 or 2 bits per channel.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):40M
Number of Inputs:2
Input Type:Differential
Data Interface:LVDS - Serial
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:2
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:1.7V ~ 1.9V
Voltage - Supply, Digital:1.7V ~ 1.9V
Features:Simultaneous Sampling
Operating Temperature:0°C ~ 70°C
Package / Case:40-WFQFN Exposed Pad
Supplier Device Package:40-QFN (6x6)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
416

Please send RFQ , we will respond immediately.
