Overview
The LTC2175CUKG-12 is a 4-channel, simultaneous sampling 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for digitizing high frequency, wide dynamic range signals, making it ideal for demanding communications applications. It features low power consumption, high signal-to-noise ratio (SNR), and spurious free dynamic range (SFDR), along with ultralow jitter, which allows for excellent noise performance even when undersampling IF frequencies.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 125 Msps |
| SNR | 70.6 dB |
| SFDR | 88 dB |
| Power Consumption | 545 mW (total), 136 mW (per channel) |
| Supply Voltage | Single 1.8 V |
| Input Ranges | 1 V P-P to 2 V P-P |
| Full Power Bandwidth S/H | 800 MHz |
| Output Type | Serial LVDS |

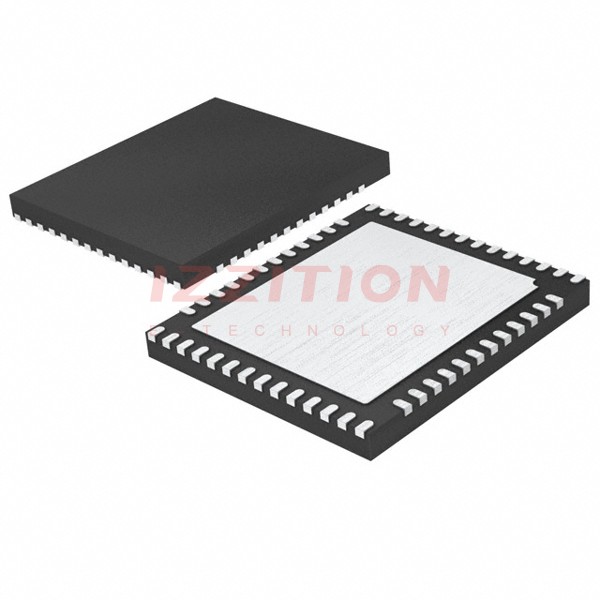

| Package | 52-Pin QFN (7mm x 8mm x 0.75mm w/ EP) |
Key Features
- 4-Channel Simultaneous Sampling ADC
- Low Power: 545 mW total, 136 mW per channel
- Single 1.8 V Supply
- Serial LVDS Outputs: 1 or 2 Bits per Channel
- Selectable Input Ranges: 1 V P-P to 2 V P-P
- 800 MHz Full Power Bandwidth S/H
- Shutdown and Nap Modes
- Serial SPI Port for Configuration
- Pin Compatible 14-Bit and 12-Bit Versions
- Ultralow Jitter of 0.15 ps RMS
Applications
The LTC2175CUKG-12 is particularly suited for demanding communications applications, including:
- High frequency signal processing
- Wide dynamic range signal digitization
- IF frequency undersampling with excellent noise performance
- Low power, high performance ADC requirements
Q & A
- What is the resolution of the LTC2175CUKG-12 ADC?
The resolution of the LTC2175CUKG-12 is 12 bits.
- What is the sampling rate of the LTC2175CUKG-12?
The sampling rate of the LTC2175CUKG-12 is 125 Msps.
- What is the SNR of the LTC2175CUKG-12?
The SNR of the LTC2175CUKG-12 is 70.6 dB.
- What is the SFDR of the LTC2175CUKG-12?
The SFDR of the LTC2175CUKG-12 is 88 dB.
- What is the power consumption of the LTC2175CUKG-12?
The total power consumption is 545 mW, with 136 mW per channel.
- What is the supply voltage for the LTC2175CUKG-12?
The supply voltage is a single 1.8 V.
- What are the input ranges for the LTC2175CUKG-12?
The input ranges are from 1 V P-P to 2 V P-P.
- What is the full power bandwidth of the sample and hold (S/H) for the LTC2175CUKG-12?
The full power bandwidth of the S/H is 800 MHz.
- What type of output does the LTC2175CUKG-12 use?
The output is serial LVDS.
- What package type is the LTC2175CUKG-12 available in?
The LTC2175CUKG-12 is available in a 52-Pin QFN package (7mm x 8mm x 0.75mm w/ EP).
