Overview

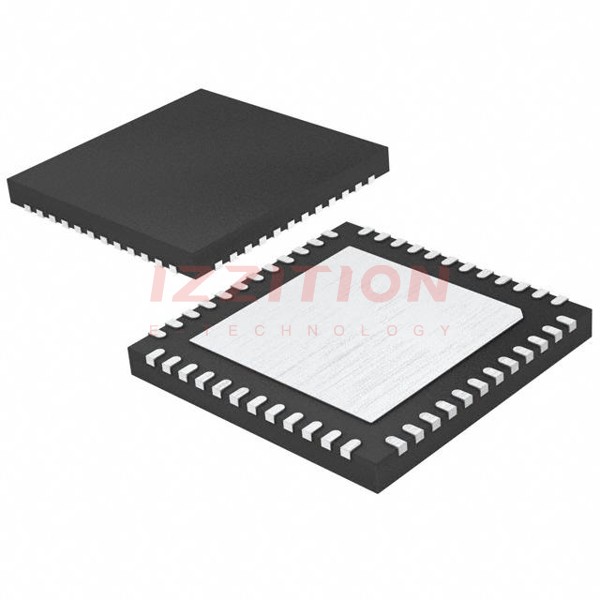

The LTC2159IUK#TRPBF is a high-performance 16-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is part of the LTC2159 family and is known for its high speed and low power consumption, making it suitable for a variety of applications requiring precise and efficient analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Input Type | Single-ended |
| Architecture | Pipelined |
| Sampling Rate | Up to 105 MSPS |
| Power Consumption | Typically 345 mW at 105 MSPS |
| Package Type | 48-QFN (7x7 mm) |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-speed operation with sampling rates up to 105 MSPS
- Low power consumption, typically 345 mW at 105 MSPS
- High resolution of 16 bits
- Pipelined architecture for efficient conversion
- Single-ended input
- Compact 48-QFN (7x7 mm) package
- Wide operating temperature range from -40°C to 85°C
Applications
- Wireless communication systems
- Medical imaging and diagnostics
- Industrial control and automation
- Aerospace and defense systems
- High-speed data acquisition systems
Q & A
- What is the resolution of the LTC2159IUK#TRPBF ADC? The resolution is 16 bits.
- What is the maximum sampling rate of the LTC2159IUK#TRPBF? The maximum sampling rate is up to 105 MSPS.
- What is the typical power consumption of the LTC2159IUK#TRPBF at 105 MSPS? The typical power consumption is 345 mW.
- What is the package type of the LTC2159IUK#TRPBF? The package type is 48-QFN (7x7 mm).
- What is the operating temperature range of the LTC2159IUK#TRPBF? The operating temperature range is from -40°C to 85°C.
- What architecture does the LTC2159IUK#TRPBF use? The LTC2159IUK#TRPBF uses a pipelined architecture.
- Is the LTC2159IUK#TRPBF suitable for high-speed applications? Yes, it is suitable for high-speed applications due to its high sampling rate and low power consumption.
- What are some common applications of the LTC2159IUK#TRPBF? Common applications include wireless communication systems, medical imaging, industrial control, aerospace and defense systems, and high-speed data acquisition systems.
- Where can I purchase the LTC2159IUK#TRPBF? You can purchase the LTC2159IUK#TRPBF from distributors such as Digi-Key, Mouser, and other authorized Analog Devices Inc. distributors.
- What is the input type of the LTC2159IUK#TRPBF? The input type is single-ended.
