Overview
The LTC2058IS8E#PBF is a dual, low noise, zero-drift operational amplifier produced by Analog Devices Inc. This precision amplifier is designed to offer high DC performance across a wide supply range, making it suitable for various high-precision applications. The LTC2058 is known for its low noise and zero-drift characteristics, ensuring stable and accurate signal amplification.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Range | 4.75V to 36V |
| Bandwidth | 2.5MHz |
| Input Offset Voltage (Vos) | 500nV |
| Input Bias Current | 30pA |

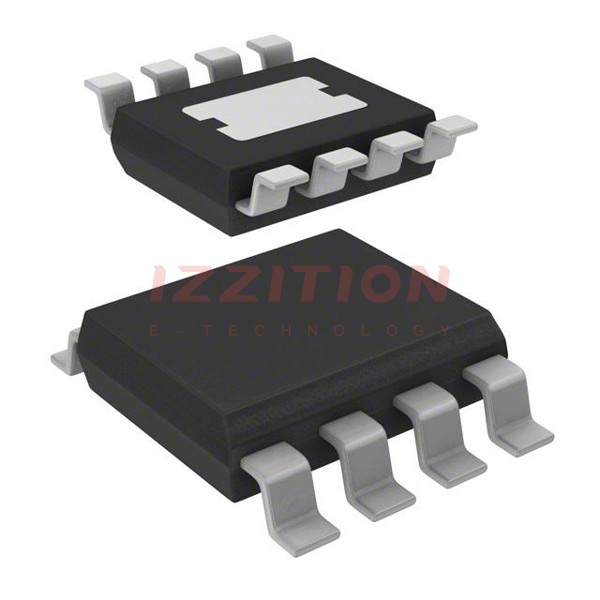

| Package | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- Dual, low noise, zero-drift operational amplifier
- Wide supply range of 4.75V to 36V
- High precision DC performance
- Low input offset voltage of 500nV
- Low input bias current of 30pA
- High bandwidth of 2.5MHz
- Exposed pad SO-8 package for improved thermal performance
Applications
The LTC2058IS8E#PBF is suitable for a variety of high-precision applications, including:
- Precision instrumentation and measurement
- High-end audio equipment
- Medical devices requiring low noise and high accuracy
- Industrial automation and control systems
- Aerospace and defense systems
Q & A
- What is the supply range of the LTC2058IS8E#PBF? The supply range is from 4.75V to 36V.
- What is the bandwidth of the LTC2058IS8E#PBF? The bandwidth is 2.5MHz.
- What is the input offset voltage (Vos) of the LTC2058IS8E#PBF? The input offset voltage is 500nV.
- What is the input bias current of the LTC2058IS8E#PBF? The input bias current is 30pA.
- What package type does the LTC2058IS8E#PBF come in? It comes in an 8-SOIC (0.154", 3.90mm Width) Exposed Pad package.
- What are the typical applications of the LTC2058IS8E#PBF? Typical applications include precision instrumentation, high-end audio equipment, medical devices, industrial automation, and aerospace systems.
- Is the LTC2058IS8E#PBF RoHS compliant? Yes, the LTC2058IS8E#PBF is RoHS compliant.
- What is the operating temperature range of the LTC2058IS8E#PBF? The operating temperature range is from -40°C to 125°C.
- Why is the LTC2058IS8E#PBF considered a precision amplifier? It is considered a precision amplifier due to its low noise, zero-drift, and high DC performance characteristics.
- Who is the manufacturer of the LTC2058IS8E#PBF? The manufacturer is Analog Devices Inc.
