Overview
The LTC2051IDD#PBF is a dual zero-drift operational amplifier produced by Analog Devices Inc. This component is part of the LTC2051/LTC2052 family, known for its high precision and low power consumption. The LTC2051IDD#PBF is particularly suited for applications requiring high accuracy and stability over a wide temperature range.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Input Offset Voltage | TA = 25°C | ±1 | ±3 | ±3 | μV |
| Average Input Offset Drift | TA = 25°C | 0.01 | 0.03 | 0.05 | μV/°C |
| Long-Term Offset Drift | 50 nV/√mo | nV/√mo | |||
| Input Bias Current | TA = 25°C | ±90 | ±150 | ±150 | pA |
| Input Noise Voltage | RS = 100Ω, DC to 10Hz | 1.5 | μVP-P | ||
| Supply Voltage | 3V, 5V, ±5V | V | |||
| Operating Temperature Range | -40°C | 85°C | °C | ||

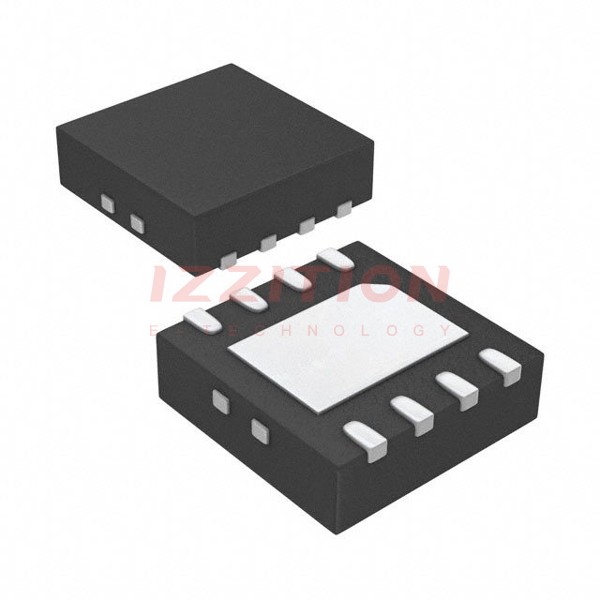

| Package | 8-Lead MSOP, 8-Lead DFN |
Key Features
- Zero-Drift Operation: The LTC2051IDD#PBF features zero-drift architecture, ensuring high precision and stability over time and temperature.
- Low Input Offset Voltage: With an input offset voltage of ±1 μV to ±3 μV, this amplifier is ideal for high-accuracy applications.
- Low Input Bias Current: The input bias current is as low as ±90 pA, minimizing the impact on the input signal.
- Low Noise: The amplifier has a low input noise voltage of 1.5 μVP-P (DC to 10Hz), making it suitable for noise-sensitive applications.
- Compact Packaging: Available in 8-Lead MSOP and 8-Lead DFN packages, making it suitable for space-limited applications.
Applications
- Precision Instrumentation: Ideal for precision measurement instruments due to its high accuracy and stability.
- Medical Devices: Suitable for medical devices requiring low noise and high precision.
- Industrial Automation: Used in industrial automation for precise signal conditioning and amplification.
- Aerospace and Defense: Applicable in aerospace and defense systems where high reliability and precision are critical.
Q & A
- What is the input offset voltage of the LTC2051IDD#PBF?
The input offset voltage is ±1 μV to ±3 μV at TA = 25°C.
- What is the operating temperature range of the LTC2051IDD#PBF?
The operating temperature range is -40°C to 85°C.
- What are the available package options for the LTC2051IDD#PBF?
The component is available in 8-Lead MSOP and 8-Lead DFN packages.
- What is the typical supply current for the LTC2051IDD#PBF?
The typical supply current is not explicitly stated for this model, but it is generally low, as it is part of the zero-drift operational amplifier family.
- Is the LTC2051IDD#PBF RoHS compliant?
- What is the input bias current of the LTC2051IDD#PBF?
The input bias current is ±90 pA to ±150 pA at TA = 25°C.
- What is the common mode rejection ratio (CMRR) of the LTC2051IDD#PBF?
The CMRR is not explicitly stated in the provided sources but is typically high for zero-drift operational amplifiers.
- Can the LTC2051IDD#PBF be used in high-temperature environments?
The component is rated for an operating temperature range of -40°C to 85°C, making it suitable for a wide range of environments.
- What are some typical applications of the LTC2051IDD#PBF?
Typical applications include precision instrumentation, medical devices, industrial automation, and aerospace and defense systems.
- How does the LTC2051IDD#PBF minimize power consumption?
While specific details for this model are not provided, zero-drift operational amplifiers generally have low power consumption due to their architecture and design).
