Overview

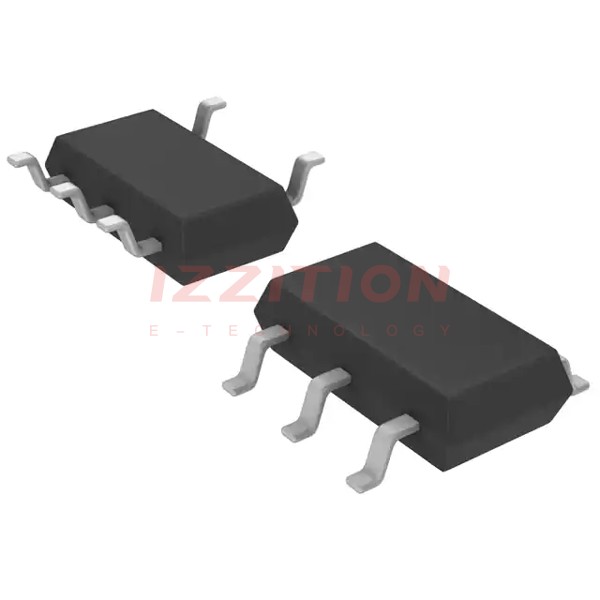

The LTC2050CS5#TRMPBF is a zero-drift operational amplifier produced by Analog Devices Inc. This component is part of the LTC2050 and LTC2050HV series, known for their high precision and low noise characteristics. The LTC2050CS5#TRMPBF is specifically packaged in a 5-lead Plastic TSOT-23 package, making it suitable for a variety of applications where space is limited.
Key Specifications
| Parameter | Value |
|---|---|
| Min Supply Voltage | 2.7 V |
| Max Supply Voltage | 6 V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Gain Bandwidth Product | 3 MHz |
| Operating Temperature Range | –40°C to 85°C |
| Storage Temperature Range | –65°C to 150°C |
| Lead Temperature (Soldering, 10 sec) | 300°C |
| Package Type | 5-Lead Plastic TSOT-23 |
Key Features
- Zero-Drift Operation: The LTC2050CS5#TRMPBF features zero-drift architecture, ensuring high precision and stability over time and temperature.
- Low Noise: It has low noise characteristics, making it suitable for high-precision applications.
- Single Supply Operation: The amplifier can operate from a single supply voltage ranging from 2.7V to 6V.
- Compact Package: The 5-lead TSOT-23 package is ideal for space-constrained designs.
- High Temperature Range: It operates over a wide temperature range of –40°C to 85°C, making it versatile for various environments.
Applications
The LTC2050CS5#TRMPBF is suitable for a wide range of applications, including:
- Precision Instrumentation: Due to its high precision and low noise, it is ideal for precision instrumentation and measurement equipment.
- Automotive Systems: The component is available in automotive-grade versions, supporting the quality and reliability requirements of automotive applications.
- Medical Devices: Its stability and precision make it a good fit for medical devices that require accurate signal processing.
- Industrial Control Systems: It can be used in industrial control systems where high accuracy and reliability are crucial.
Q & A
- What is the minimum supply voltage for the LTC2050CS5#TRMPBF?
The minimum supply voltage is 2.7 V. - What is the maximum operating temperature for the LTC2050CS5#TRMPBF?
The maximum operating temperature is 85°C. - What is the package type of the LTC2050CS5#TRMPBF?
The package type is 5-Lead Plastic TSOT-23. - Does the LTC2050CS5#TRMPBF support automotive applications?
Yes, it is available in automotive-grade versions. - What is the gain bandwidth product of the LTC2050CS5#TRMPBF?
The gain bandwidth product is 3 MHz. - Is the LTC2050CS5#TRMPBF suitable for high-precision applications?
Yes, it is suitable due to its zero-drift operation and low noise characteristics. - What is the storage temperature range for the LTC2050CS5#TRMPBF?
The storage temperature range is –65°C to 150°C. - Can the LTC2050CS5#TRMPBF operate from a single supply voltage?
Yes, it can operate from a single supply voltage ranging from 2.7V to 6V. - What is the lead temperature for soldering the LTC2050CS5#TRMPBF?
The lead temperature for soldering is 300°C for 10 seconds. - Is the LTC2050CS5#TRMPBF available in reel packaging?
Yes, it is available in tape and reel packaging with the #TRMPBF suffix.
