Overview

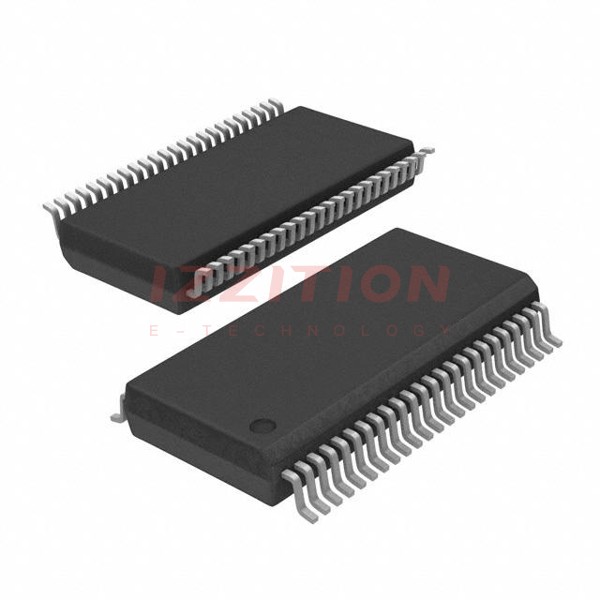

The LTC1851IFW#PBF is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed to provide high accuracy and speed, making it suitable for a variety of applications that require precise analog-to-digital conversion. The LTC1851IFW#PBF is housed in a 48-lead TSSOP package, which is compact and suitable for space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Type | Successive Approximation Register (SAR) |
| Number of Inputs | 8 |
| Package Type | 48-TSSOP |
| Operating Temperature Range | -40°C to 85°C |
| Supply Voltage | 4.75V to 5.25V |
| Sampling Rate | Up to 200ksps |
Key Features
- High-speed conversion rate of up to 200ksps
- Low power consumption, making it suitable for battery-powered devices
- High accuracy with low noise and high linearity
- Compact 48-TSSOP package for space-efficient designs
- Operating temperature range from -40°C to 85°C, suitable for industrial and automotive applications
Applications
- Industrial automation and control systems
- Automotive systems, including sensor interfaces and data acquisition
- Medical devices requiring precise analog-to-digital conversion
- Test and measurement equipment
- Embedded systems and IoT devices
Q & A
- What is the resolution of the LTC1851IFW#PBF ADC? The resolution is 12 bits.
- What is the conversion type of the LTC1851IFW#PBF? It uses the Successive Approximation Register (SAR) conversion method.
- How many analog inputs does the LTC1851IFW#PBF have? It has 8 analog inputs.
- What is the package type of the LTC1851IFW#PBF? It is housed in a 48-lead TSSOP package.
- What is the operating temperature range of the LTC1851IFW#PBF? The operating temperature range is from -40°C to 85°C.
- What is the supply voltage range for the LTC1851IFW#PBF? The supply voltage range is from 4.75V to 5.25V.
- What is the maximum sampling rate of the LTC1851IFW#PBF? The maximum sampling rate is up to 200ksps.
- Is the LTC1851IFW#PBF suitable for industrial applications? Yes, it is suitable for industrial applications due to its operating temperature range and high accuracy.
- Can the LTC1851IFW#PBF be used in automotive systems? Yes, it can be used in automotive systems for sensor interfaces and data acquisition.
- Is the LTC1851IFW#PBF available in other package types? The specified model is available in a 48-TSSOP package, but other models in the series may offer different package options.
