Overview
The LTC1750CFW#TRPBF is a high-performance, 14-bit pipelined analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to offer high speed and accuracy, making it suitable for a variety of applications that require precise analog-to-digital conversion. The LTC1750 features a robust design with low power consumption and high reliability, making it an excellent choice for demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Conversion Rate | Up to 105 MSPS |
| Input Range | 1 V to 2 V (differential) |
| Power Consumption | Approximately 350 mW at 105 MSPS |
| Supply Voltage | 3.3 V or 5 V |

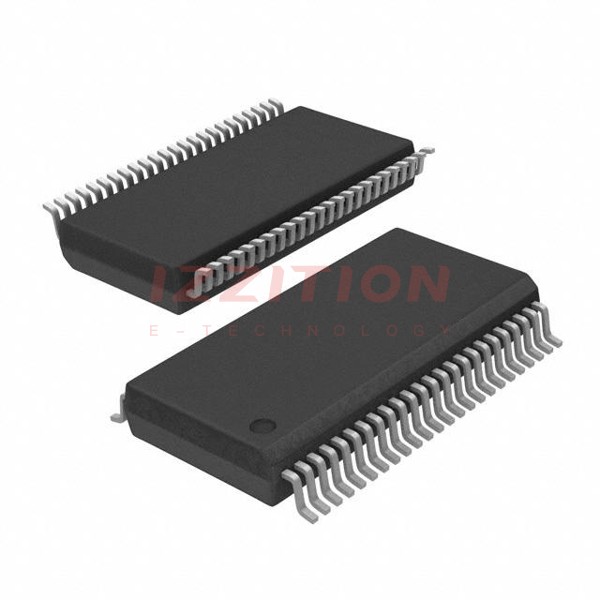

| Package Type | 48-TSSOP |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-speed conversion rate of up to 105 MSPS
- Low power consumption of approximately 350 mW at 105 MSPS
- High accuracy with a signal-to-noise ratio (SNR) of up to 73.5 dB
- Differential input range of 1 V to 2 V
- Support for both 3.3 V and 5 V supply voltages
- Compact 48-TSSOP package
- Wide operating temperature range from -40°C to 85°C
Applications
The LTC1750CFW#TRPBF is versatile and can be used in various applications, including:
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Wireless communication systems
- Industrial control and automation
- Aerospace and defense systems
Q & A
- What is the resolution of the LTC1750CFW#TRPBF ADC?
The LTC1750CFW#TRPBF has a resolution of 14 bits. - What is the maximum conversion rate of the LTC1750CFW#TRPBF?
The maximum conversion rate is up to 105 MSPS. - What is the input range of the LTC1750CFW#TRPBF?
The input range is 1 V to 2 V (differential). - How much power does the LTC1750CFW#TRPBF consume at 105 MSPS?
It consumes approximately 350 mW at 105 MSPS. - What are the supported supply voltages for the LTC1750CFW#TRPBF?
The component supports both 3.3 V and 5 V supply voltages. - What is the package type of the LTC1750CFW#TRPBF?
The package type is 48-TSSOP. - What is the operating temperature range of the LTC1750CFW#TRPBF?
The operating temperature range is from -40°C to 85°C. - In which applications is the LTC1750CFW#TRPBF commonly used?
It is commonly used in high-speed data acquisition systems, medical imaging, wireless communication systems, industrial control, and aerospace and defense systems. - Where can I purchase the LTC1750CFW#TRPBF?
You can purchase it from distributors such as Digi-Key, Mouser, and other authorized distributors. - What is the typical price range for the LTC1750CFW#TRPBF?
The price range varies from $30.44 to $74.88 for a single unit, depending on the distributor and quantity.
