Overview

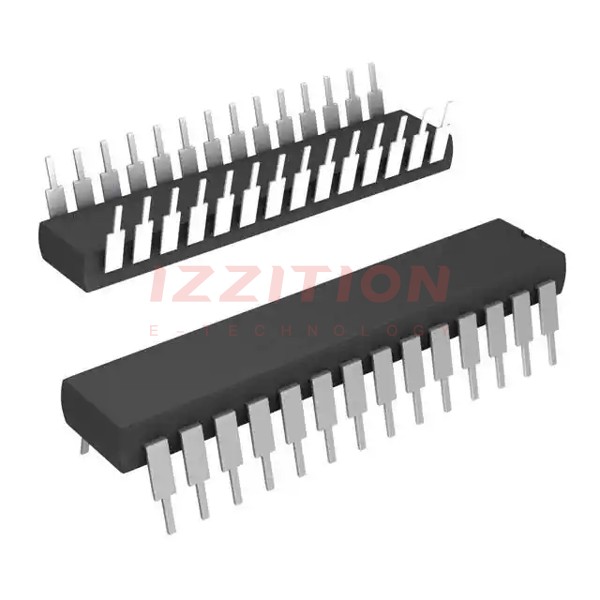

The LTC1605-1IN#PBF is a 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for high-precision data conversion and is part of the LTC1605 series, known for its reliability and performance in various applications. The LTC1605-1IN#PBF features a successive approximation register (SAR) architecture, which ensures high accuracy and speed in converting analog signals to digital data.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC A/D CONV 16BIT SAMPLNG 28-DIP |
| Voltage - Supply, Digital | 5V |
| Voltage - Supply, Analog | 5V |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| Sampling Rate (Per Second) | 100k |
| Reference Type | External, Internal |
| Ratio - S/H:ADC | 1:1 |
| Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 1 |
| Number of Bits | 16 |
| Number of A/D Converters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Architecture | SAR |
Key Features
- High Resolution: 16-bit analog-to-digital conversion for precise data acquisition.
- Fast Sampling Rate: Up to 100k samples per second, making it suitable for high-speed applications.
- Flexible Reference: Supports both external and internal reference types.
- Single-Ended Input: Simplifies the connection and setup process.
- Parallel Data Interface: Allows for efficient data transfer.
- SAR Architecture: Ensures high accuracy and reliability in the conversion process.
- Wide Operating Temperature Range: From -40°C to 85°C, making it versatile for various environments.
- Lead-Free and RoHS Compliant: Meets environmental and safety standards.
Applications
- Industrial Automation: For precise measurement and control in industrial settings.
- Medical Devices: In medical equipment requiring high accuracy and reliability.
- Aerospace and Defense: For applications demanding high precision and robustness.
- Automotive Systems: In vehicle systems that require accurate data conversion.
- Test and Measurement Equipment: For calibration and measurement tools.
Q & A
- What is the resolution of the LTC1605-1IN#PBF ADC?
The LTC1605-1IN#PBF has a resolution of 16 bits.
- What is the sampling rate of the LTC1605-1IN#PBF?
The sampling rate is up to 100k samples per second.
- What are the supply voltages for the LTC1605-1IN#PBF?
The supply voltages are 5V for both digital and analog supplies.
- What is the package type of the LTC1605-1IN#PBF?
The package type is 28-DIP (0.300", 7.62mm).
- Is the LTC1605-1IN#PBF lead-free and RoHS compliant?
Yes, it is lead-free and RoHS compliant.
- What is the operating temperature range of the LTC1605-1IN#PBF?
The operating temperature range is from -40°C to 85°C.
- What type of data interface does the LTC1605-1IN#PBF use?
The data interface is parallel.
- What is the architecture of the LTC1605-1IN#PBF ADC?
The architecture is successive approximation register (SAR).
- Can the LTC1605-1IN#PBF use both external and internal references?
Yes, it supports both external and internal reference types.
- How many inputs does the LTC1605-1IN#PBF have?
The LTC1605-1IN#PBF has one input.
