Overview

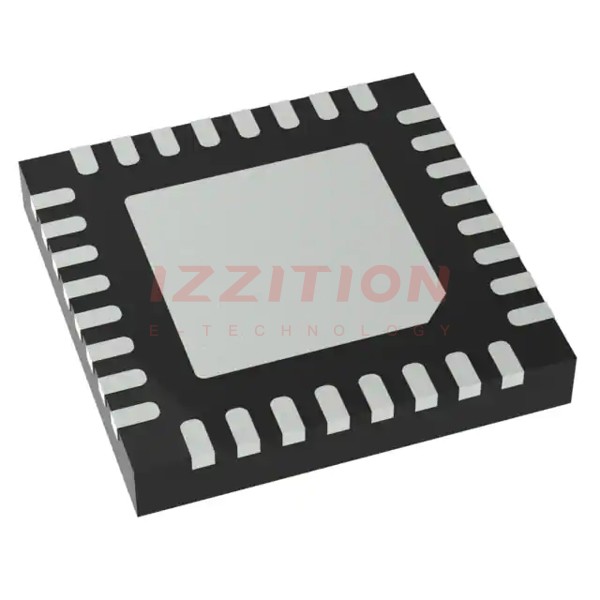

The LTC1408IUH#PBF is a high-performance, 14-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of the Linear Technology product line, now integrated into Analog Devices. It features a 6-channel, single ADC with a sampling rate of 600 ksamples per second. The LTC1408IUH#PBF is packaged in a 32-lead QFN (5mm x 5mm x 0.75mm with exposed pad), making it suitable for a variety of applications requiring precise analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Number of Channels | 6 |
| Sampling Rate | 600 ksamples per second |
| Supply Voltage (Analog) | 2.7V to 3.6V |
| Package Type | 32-Lead QFN (5mm x 5mm x 0.75mm with exposed pad) |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-resolution 14-bit ADC with 6 channels
- Sampling rate of 600 ksamples per second
- Low power consumption
- Serial interface for data communication
- Compact 32-lead QFN package with exposed pad for improved thermal performance
- Wide operating temperature range from -40°C to 85°C
Applications
The LTC1408IUH#PBF is versatile and can be used in a variety of applications, including:
- Industrial automation and control systems
- Medical devices requiring precise analog-to-digital conversion
- Aerospace and defense systems
- Automotive systems, especially those requiring high reliability and precision
- Data acquisition systems in scientific and research environments
Q & A
- What is the resolution of the LTC1408IUH#PBF ADC?
The LTC1408IUH#PBF has a resolution of 14 bits. - How many channels does the LTC1408IUH#PBF support?
The LTC1408IUH#PBF supports 6 channels. - What is the sampling rate of the LTC1408IUH#PBF?
The sampling rate is 600 ksamples per second. - What is the supply voltage range for the LTC1408IUH#PBF?
The supply voltage range is from 2.7V to 3.6V. - What is the package type of the LTC1408IUH#PBF?
The package type is a 32-Lead QFN (5mm x 5mm x 0.75mm with exposed pad). - What is the operating temperature range of the LTC1408IUH#PBF?
The operating temperature range is from -40°C to 85°C. - Is the LTC1408IUH#PBF suitable for high-reliability applications?
Yes, the LTC1408IUH#PBF is designed for high-reliability applications, including aerospace, defense, and automotive systems. - What interface does the LTC1408IUH#PBF use for data communication?
The LTC1408IUH#PBF uses a serial interface for data communication. - Where can I find detailed specifications and datasheets for the LTC1408IUH#PBF?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor sites like Digi-Key, Mouser, and Octopart. - What are some common applications of the LTC1408IUH#PBF?
Common applications include industrial automation, medical devices, aerospace and defense systems, automotive systems, and data acquisition systems.
