Overview

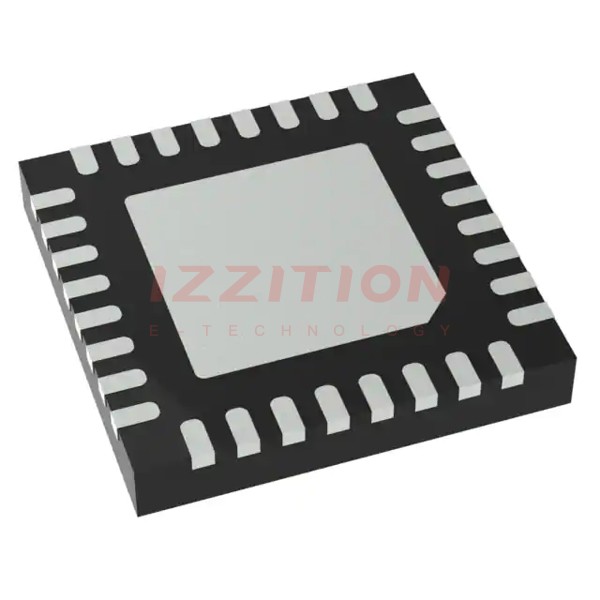

The LTC1408IUH-12#PBF is a high-performance, 6-channel, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for high-speed data acquisition and is housed in a 32-pin QFN (Quad Flat No-Lead) package. It operates at a sampling rate of 600 kSPS (kilosamples per second) and is suitable for a wide range of applications requiring precise and rapid analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 6 |
| Resolution | 12-bit |
| Sampling Rate | 600 kSPS |
| Package Type | 32-Pin QFN |
| Operating Temperature Range | -40°C to 85°C |
| Lead Free Status / RoHS Status | Yes |
| Interface | Serial |
Key Features
- High-speed 600 kSPS sampling rate for rapid data acquisition.
- 12-bit resolution providing high accuracy in analog-to-digital conversion.
- 6-channel capability, allowing for simultaneous conversion of multiple analog signals.
- Compact 32-pin QFN package, suitable for space-constrained applications.
- Wide operating temperature range from -40°C to 85°C.
- Lead-free and RoHS compliant, ensuring environmental sustainability.
Applications
The LTC1408IUH-12#PBF is versatile and can be used in various applications, including:
- Data acquisition systems requiring high-speed and multi-channel capabilities.
- Medical devices such as patient monitoring systems and diagnostic equipment.
- Industrial automation and control systems.
- Aerospace and defense applications where high reliability and precision are critical.
- Automotive systems, including sensor interfaces and control units.
Q & A
- What is the sampling rate of the LTC1408IUH-12#PBF? The sampling rate is 600 kSPS.
- How many channels does the LTC1408IUH-12#PBF have? It has 6 channels.
- What is the resolution of the ADC? The resolution is 12-bit.
- What is the package type of the LTC1408IUH-12#PBF? It is a 32-pin QFN package.
- Is the LTC1408IUH-12#PBF lead-free and RoHS compliant? Yes, it is lead-free and RoHS compliant.
- What is the operating temperature range of the LTC1408IUH-12#PBF? The operating temperature range is from -40°C to 85°C.
- What interface does the LTC1408IUH-12#PBF use? It uses a serial interface.
- Where can the LTC1408IUH-12#PBF be used? It can be used in data acquisition systems, medical devices, industrial automation, aerospace, and automotive systems.
- Why is the LTC1408IUH-12#PBF suitable for high-speed applications? It is suitable due to its high sampling rate of 600 kSPS and multi-channel capability.
- Is the LTC1408IUH-12#PBF suitable for space-constrained applications? Yes, due to its compact 32-pin QFN package.
