Overview

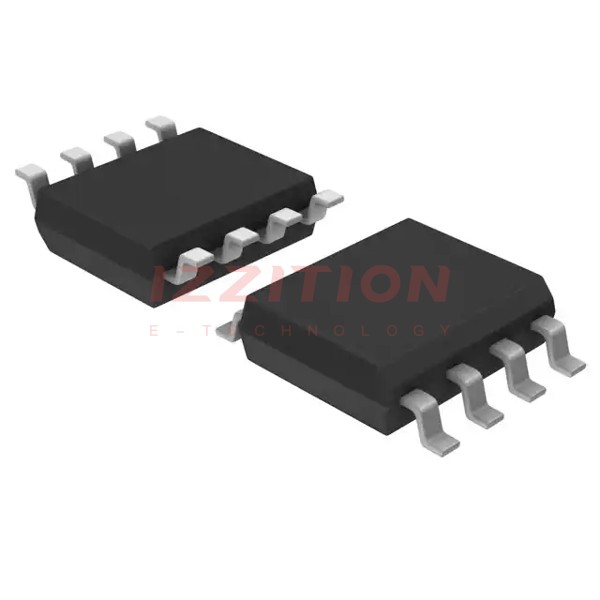

The LTC1404IS8#TRPBF is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of the LTC1404 family and is known for its high speed and low power consumption, making it suitable for a variety of applications requiring precise and efficient analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 600 ksamples/s |
| Power Supply | Single 5V supply |
| Power Consumption | |
| Interface | Serial Data Output (SD) |
| Package | SO-8 |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-speed conversion rate of 600 ksamples/s
- Low power consumption, typically 10mW at 600ksps
- Single 5V power supply
- Serial data output (SD) interface
- Compact SO-8 package
- Wide operating temperature range from -40°C to 85°C
Applications
The LTC1404IS8#TRPBF is versatile and can be used in various applications, including:
- Data acquisition systems
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
Q & A
- What is the resolution of the LTC1404IS8#TRPBF ADC? The resolution is 12 bits.
- What is the maximum sampling rate of the LTC1404IS8#TRPBF? The maximum sampling rate is 600 ksamples/s.
- What is the power supply requirement for the LTC1404IS8#TRPBF? It requires a single 5V power supply.
- How much power does the LTC1404IS8#TRPBF typically consume? It typically consumes 10mW at 600ksps.
- What type of interface does the LTC1404IS8#TRPBF use? It uses a serial data output (SD) interface.
- In what package is the LTC1404IS8#TRPBF available? It is available in an SO-8 package.
- What is the operating temperature range of the LTC1404IS8#TRPBF? The operating temperature range is from -40°C to 85°C.
- Where can I find detailed specifications for the LTC1404IS8#TRPBF? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser.
- What are some common applications for the LTC1404IS8#TRPBF? Common applications include data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems.
- Is the LTC1404IS8#TRPBF suitable for high-speed data conversion? Yes, it is suitable for high-speed data conversion due to its 600 ksamples/s sampling rate.
