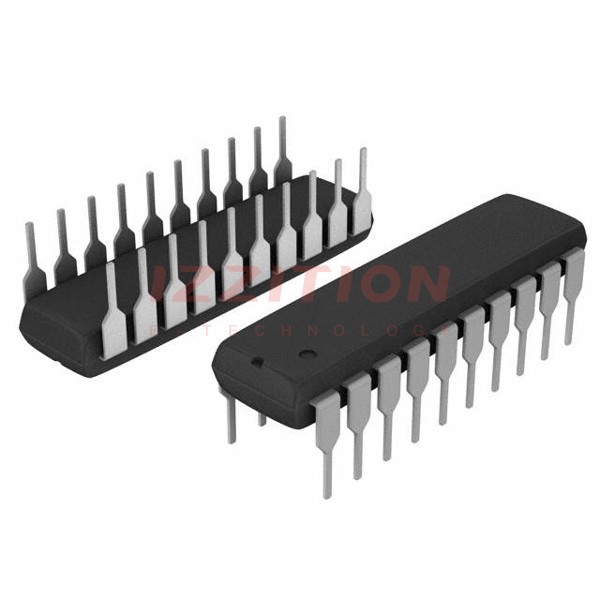

LTC1290BCJ
  • Share:

Analog Devices Inc. LTC1290BCJ

Manufacturer No:
LTC1290BCJ
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
12-BIT SERIAL I/O ADC W/8 CH MUX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC1290BCJ is a 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for data acquisition and features a serial I/O interface along with an 8-channel multiplexer. It is widely used in various applications requiring precise analog-to-digital conversion.

Key Specifications

ParameterValue
Resolution12 bits
Number of Input Channels8
Conversion TypeSAR (Successive Approximation Register)
Package Type20-CERDIP
Operating Temperature Range-40°C to 85°C
Supply Voltage4.5V to 5.5V
InterfaceSerial I/O

Key Features

  • 12-bit resolution with 8 input channels
  • SAR (Successive Approximation Register) conversion technique for high accuracy
  • Serial I/O interface for easy communication
  • 8-channel multiplexer for flexible input selection
  • Operating temperature range from -40°C to 85°C
  • Supply voltage range of 4.5V to 5.5V

Applications

The LTC1290BCJ is suitable for a variety of applications, including:

  • Data acquisition systems
  • Industrial control systems
  • Medical devices requiring precise analog-to-digital conversion
  • Aerospace and defense systems
  • Automotive systems

Q & A

  1. What is the resolution of the LTC1290BCJ?
    The LTC1290BCJ has a resolution of 12 bits.
  2. How many input channels does the LTC1290BCJ have?
    The LTC1290BCJ has 8 input channels.
  3. What type of conversion technique does the LTC1290BCJ use?
    The LTC1290BCJ uses the SAR (Successive Approximation Register) conversion technique.
  4. What is the package type of the LTC1290BCJ?
    The LTC1290BCJ comes in a 20-CERDIP package.
  5. What is the operating temperature range of the LTC1290BCJ?
    The operating temperature range is from -40°C to 85°C.
  6. What is the supply voltage range for the LTC1290BCJ?
    The supply voltage range is from 4.5V to 5.5V.
  7. What type of interface does the LTC1290BCJ have?
    The LTC1290BCJ has a serial I/O interface.
  8. Is the LTC1290BCJ suitable for medical devices?
    Yes, the LTC1290BCJ is suitable for medical devices due to its high accuracy and reliability.
  9. Can the LTC1290BCJ be used in industrial control systems?
    Yes, the LTC1290BCJ can be used in industrial control systems.
  10. Where can I purchase the LTC1290BCJ?
    The LTC1290BCJ can be purchased from distributors such as Digi-Key, Mouser, and other authorized suppliers.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):50k
Number of Inputs:4, 8
Input Type:Differential, Single Ended
Data Interface:SPI
Configuration:MUX-S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:5V, ±5V
Voltage - Supply, Digital:5V, ±5V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:20-CDIP (0.300", 7.62mm)
Supplier Device Package:20-CDIP
Mounting Type:Through Hole
