Overview
The LTC1273ACSW#PBF is a 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This integrated circuit is designed for high-precision data conversion and is widely used in various industrial, medical, and automotive applications. The LTC1273ACSW#PBF features a successive approximation register (SAR) architecture, ensuring high accuracy and reliability in data conversion processes.
Key Specifications
| Specification | Value |
|---|---|
| Number of Bits | 12 |
| Number of A/D Converters | 1 |
| Input Type | Single Ended |
| Supply Voltage (Digital) | 5V |
| Supply Voltage (Analog) | 5V |
| Sampling Rate | 250k samples per second |
| Reference Type | Internal |

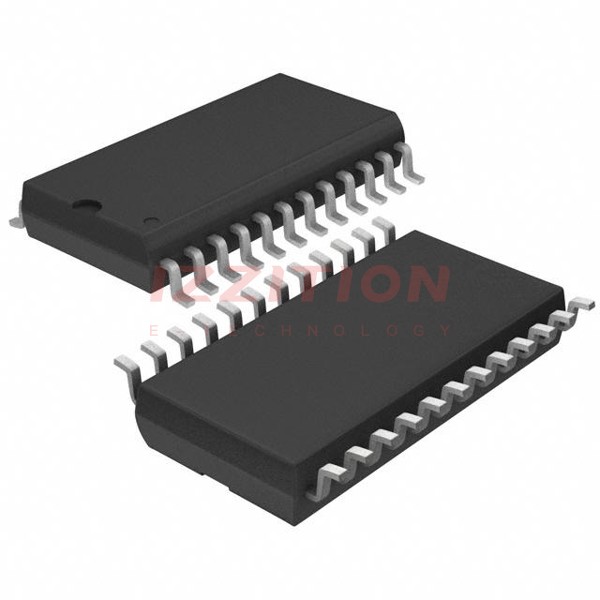

| Package/Casing | 24-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | 0°C ~ 70°C |
| Lead Free/RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- High Precision: 12-bit resolution ensures accurate data conversion.
- SAR Architecture: Successive approximation register architecture for efficient and reliable conversion.
- Single Input: Single-ended input for simplicity in design and implementation.
- Internal Reference: Internal reference voltage for stability and reduced external component requirements.
- Parallel Data Interface: Facilitates easy integration with other digital systems.
- Lead Free and RoHS Compliant: Environmentally friendly and compliant with regulatory standards.
Applications
The LTC1273ACSW#PBF is versatile and can be used in a variety of applications, including:
- Industrial Automation: For precise measurement and control in industrial environments.
- Medical Devices: In medical equipment requiring high accuracy and reliability.
- Automotive Systems: For sensor data acquisition and processing in automotive applications.
- Test and Measurement Equipment: In instruments that require precise analog-to-digital conversion.
Q & A
- What is the resolution of the LTC1273ACSW#PBF ADC?
The LTC1273ACSW#PBF has a 12-bit resolution. - What is the sampling rate of the LTC1273ACSW#PBF?
The sampling rate is 250k samples per second. - What is the supply voltage for the LTC1273ACSW#PBF?
The supply voltage for both digital and analog sections is 5V. - What is the package type of the LTC1273ACSW#PBF?
The package type is 24-SOIC (0.295", 7.50mm Width). - Is the LTC1273ACSW#PBF lead free and RoHS compliant?
Yes, it is lead free and RoHS compliant. - What is the operating temperature range of the LTC1273ACSW#PBF?
The operating temperature range is 0°C ~ 70°C. - What type of input does the LTC1273ACSW#PBF support?
The LTC1273ACSW#PBF supports single-ended inputs. - Does the LTC1273ACSW#PBF have an internal reference voltage?
Yes, it has an internal reference voltage. - What is the moisture sensitivity level (MSL) of the LTC1273ACSW#PBF?
The MSL is 1 (Unlimited). - What type of data interface does the LTC1273ACSW#PBF use?
The LTC1273ACSW#PBF uses a parallel data interface.
