Overview
The LT6200CS6-5#TRMPBF is a high-performance operational amplifier produced by Analog Devices Inc. This device is part of the LT6200 family, known for its ultralow noise and high bandwidth characteristics. It is designed to be rail-to-rail input and output, making it versatile for various signal conditioning applications. The amplifier combines very low noise with a high gain bandwidth and a fast slew rate, optimizing it for low voltage signal conditioning systems.
Key Specifications
| Parameter | Value |
|---|---|
| Gain Bandwidth Product | 800 MHz |
| Slew Rate | 250 V/μs |
| Noise Voltage | 0.95 nV/√Hz |
| Input Offset Voltage | |
| Operating Temperature Range | 0°C to 70°C |

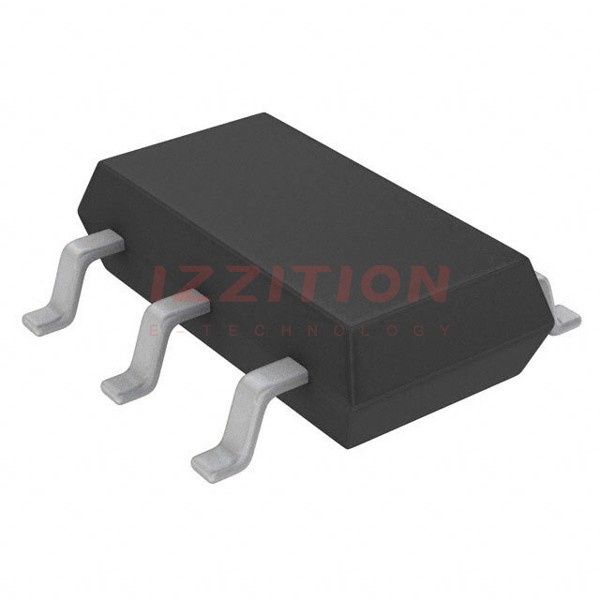

| Package Type | TSOT-6 |
| Supply Voltage Range | 2.2V to 12.6V |
Key Features
- Ultralow noise: 0.95 nV/√Hz noise voltage.
- High gain bandwidth product: 800 MHz.
- Fast slew rate: 250 V/μs.
- Rail-to-rail input and output.
- Unity gain stable.
- Low power shutdown mode.
Applications
The LT6200CS6-5#TRMPBF is suitable for a variety of applications, including:
- Low voltage signal conditioning systems.
- High-speed data acquisition systems.
- Medical devices requiring low noise and high accuracy.
- Automotive circuit designs.
- Audio and video processing systems.
Q & A
- What is the gain bandwidth product of the LT6200CS6-5#TRMPBF? The gain bandwidth product is 800 MHz.
- What is the slew rate of the LT6200CS6-5#TRMPBF? The slew rate is 250 V/μs.
- What is the noise voltage of the LT6200CS6-5#TRMPBF? The noise voltage is 0.95 nV/√Hz.
- What is the operating temperature range of the LT6200CS6-5#TRMPBF? The operating temperature range is 0°C to 70°C.
- What package type does the LT6200CS6-5#TRMPBF come in? The package type is TSOT-6.
- Is the LT6200CS6-5#TRMPBF rail-to-rail input and output? Yes, it is rail-to-rail input and output.
- What is the supply voltage range for the LT6200CS6-5#TRMPBF? The supply voltage range is 2.2V to 12.6V.
- Does the LT6200CS6-5#TRMPBF have a shutdown mode? Yes, it has a low power shutdown mode.
- What are some typical applications for the LT6200CS6-5#TRMPBF? Typical applications include low voltage signal conditioning systems, high-speed data acquisition systems, medical devices, automotive circuit designs, and audio/video processing systems.
- Where can I find detailed specifications for the LT6200CS6-5#TRMPBF? Detailed specifications can be found on the official Analog Devices website, as well as on distributor websites like Digi-Key and Farnell).
