Overview

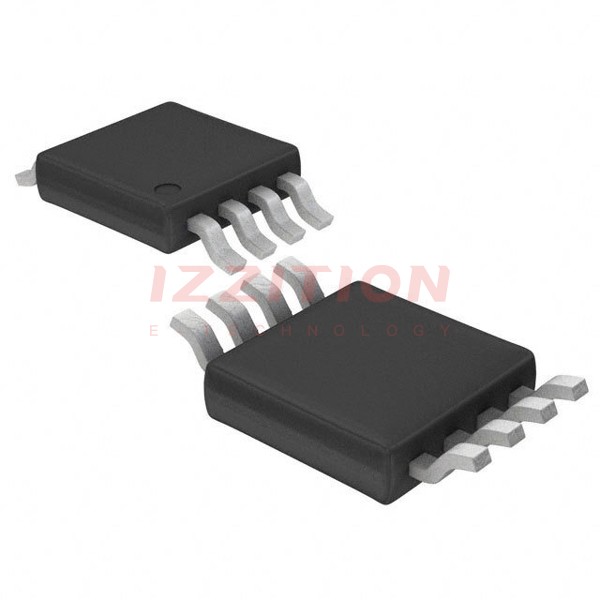

The LT6011CMS8#TRPBF is a dual precision operational amplifier produced by Analog Devices Inc. This device is part of the Linear Technology product line, known for its high performance and reliability. The LT6011 is designed to offer low noise, low offset voltage, and high common-mode rejection ratio, making it suitable for a variety of precision analog applications.
Key Specifications
| Parameter | Value |
|---|---|
| Input Offset Voltage (Vos) | 60 µV |
| Input Bias Current | 150 pA |
| Common Mode Rejection Ratio | 107 dB |
| Gain Bandwidth Product | 330 kHz |
| Noise Density | 14 nV/√Hz |
| Supply Current | 135 µA per amplifier |
| Output Type | Rail-to-Rail |
Key Features
- Low input offset voltage of 60 µV, ensuring high precision in analog circuits.
- Low input bias current of 150 pA, reducing the impact on the input signal.
- High common-mode rejection ratio of 107 dB, providing excellent noise rejection.
- Low noise density of 14 nV/√Hz, suitable for high-sensitivity applications.
- Rail-to-rail output, allowing the output voltage to swing close to the supply rails.
- Low supply current of 135 µA per amplifier, making it energy-efficient.
Applications
- Precision instrumentation and measurement systems.
- Medical devices requiring low noise and high accuracy.
- Aerospace and defense applications where reliability and precision are critical.
- Industrial control systems and automation.
- High-performance audio and video equipment.
Q & A
- What is the input offset voltage of the LT6011CMS8#TRPBF?
The input offset voltage is 60 µV. - What is the common-mode rejection ratio of this operational amplifier?
The common-mode rejection ratio is 107 dB. - What is the gain bandwidth product of the LT6011CMS8#TRPBF?
The gain bandwidth product is 330 kHz. - What is the input bias current of this device?
The input bias current is 150 pA. - Is the output of the LT6011CMS8#TRPBF rail-to-rail?
Yes, the output is rail-to-rail. - What is the noise density of the LT6011CMS8#TRPBF?
The noise density is 14 nV/√Hz. - How much current does each amplifier in the LT6011CMS8#TRPBF consume?
Each amplifier consumes 135 µA. - In what types of applications is the LT6011CMS8#TRPBF commonly used?
It is commonly used in precision instrumentation, medical devices, aerospace and defense, industrial control systems, and high-performance audio and video equipment. - Who is the manufacturer of the LT6011CMS8#TRPBF?
The manufacturer is Analog Devices Inc. - Where can I find detailed specifications for the LT6011CMS8#TRPBF?
Detailed specifications can be found on the datasheet available from sources like Digi-Key, Mouser Electronics, and the official Analog Devices website.
