Overview

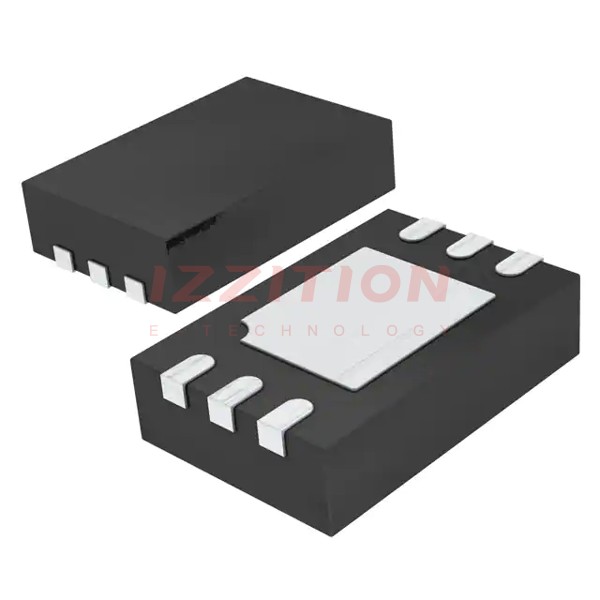

The LT6000IDCB#TRPBF is a single, precision rail-to-rail operational amplifier (op amp) produced by Analog Devices Inc. This device is designed for low-power applications and offers high precision and stability. It operates on a single supply voltage as low as 1.8V and consumes a very low current of 13µA, making it ideal for battery-powered devices and other low-power systems.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 1.8V to 5.5V |
| Quiescent Current | 13µA |
| Input Offset Voltage | 250µV (typical) |
| Input Bias Current | 1nA (typical) |
| Gain Bandwidth Product | 10kHz (typical) |
| Temperature Range | -40℃ to 85℃ |
| Package | 6-DFN (2x3) |
| Pins | 6 |
Key Features
- Precision rail-to-rail input and output stages
- Low quiescent current of 13µA
- Single supply operation from 1.8V to 5.5V
- Low input offset voltage of 250µV (typical)
- Low input bias current of 1nA (typical)
- Compact 6-DFN (2x3) package
Applications
- Battery-powered devices
- Low-power sensor interfaces
- Portable medical devices
- Automotive systems
- Industrial control systems
Q & A
- What is the supply voltage range of the LT6000IDCB#TRPBF? The supply voltage range is from 1.8V to 5.5V.
- What is the quiescent current of the LT6000IDCB#TRPBF? The quiescent current is 13µA.
- What is the typical input offset voltage of the LT6000IDCB#TRPBF? The typical input offset voltage is 250µV.
- What is the typical input bias current of the LT6000IDCB#TRPBF? The typical input bias current is 1nA.
- What is the gain bandwidth product of the LT6000IDCB#TRPBF? The gain bandwidth product is 10kHz (typical).
- What is the operating temperature range of the LT6000IDCB#TRPBF? The operating temperature range is -40℃ to 85℃.
- What package type is the LT6000IDCB#TRPBF available in? The LT6000IDCB#TRPBF is available in a 6-DFN (2x3) package.
- How many pins does the LT6000IDCB#TRPBF have? The LT6000IDCB#TRPBF has 6 pins.
- Is the LT6000IDCB#TRPBF suitable for battery-powered devices? Yes, it is highly suitable due to its low power consumption.
- Where can I find the datasheet for the LT6000IDCB#TRPBF? You can find the datasheet on the official Analog Devices website or through distributors like Digi-Key, Mouser, and All About Circuits.
