Overview
The LT3062EMS8E#PBF is a micropower, low dropout (LDO) linear regulator produced by Analog Devices Inc. This device is part of the LT3062 series and is known for its high performance and versatility. It operates over a wide input voltage range of 1.6V to 45V, making it suitable for various power supply applications. The LT3062 is available in fixed output voltages of 3.3V and 5V, as well as an adjustable output voltage range from 600mV to 40V.
Key Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 1.6V to 45V |
| Output Voltage | Fixed: 3.3V, 5V; Adjustable: 600mV to 40V |
| Output Current | Up to 200mA |
| Dropout Voltage | Typically 350mV at 200mA load |
| Noise | 30µVRMS at 10Hz to 100kHz bandwidth |

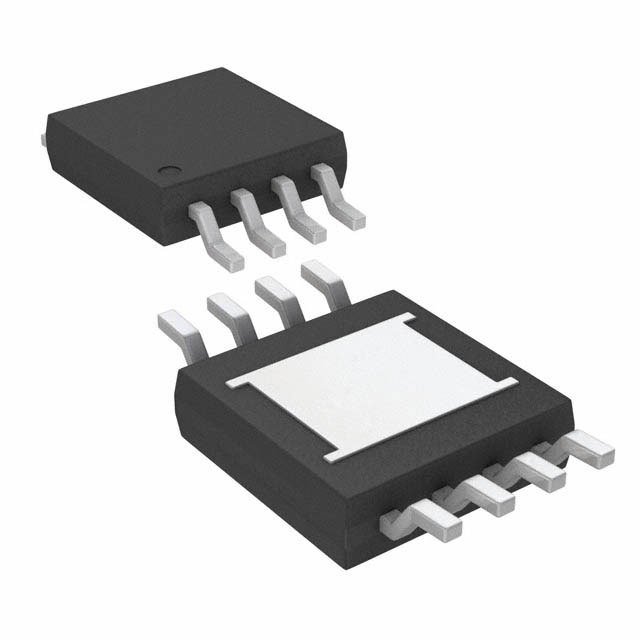

| Package | 8-Lead MSOP-EP |
| Operating Temperature Range | –40°C to 125°C |
| Load Regulation | Tight regulation over load and temperature |
Key Features
- Micropower operation with low quiescent current
- Low dropout voltage, typically 350mV at 200mA load
- Low noise output, 30µVRMS at 10Hz to 100kHz bandwidth
- Adjustable output voltage range from 600mV to 40V
- High accuracy and tight load regulation
- Compact 8-Lead MSOP-EP package
- Wide operating temperature range: –40°C to 125°C
Applications
- Battery-powered systems
- Automotive power supplies
- Industrial power supplies
- Avionic power supplies
- Portable instruments
Q & A
- What is the input voltage range of the LT3062EMS8E#PBF? The input voltage range is from 1.6V to 45V.
- What are the available output voltages for the LT3062? The LT3062 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from 600mV to 40V.
- What is the maximum output current of the LT3062? The maximum output current is up to 200mA.
- What is the typical dropout voltage of the LT3062? The typical dropout voltage is 350mV at a 200mA load.
- What is the noise performance of the LT3062? The noise performance is 30µVRMS at a bandwidth of 10Hz to 100kHz.
- In what package is the LT3062EMS8E#PBF available? The LT3062EMS8E#PBF is available in an 8-Lead MSOP-EP package.
- What is the operating temperature range of the LT3062? The operating temperature range is from –40°C to 125°C.
- What are some typical applications of the LT3062? Typical applications include battery-powered systems, automotive power supplies, industrial power supplies, avionic power supplies, and portable instruments.
- Is the LT3062 suitable for high-accuracy applications? Yes, the LT3062 is known for its high accuracy and tight load regulation.
- Where can I find more detailed specifications for the LT3062? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and LCSC.
