Overview

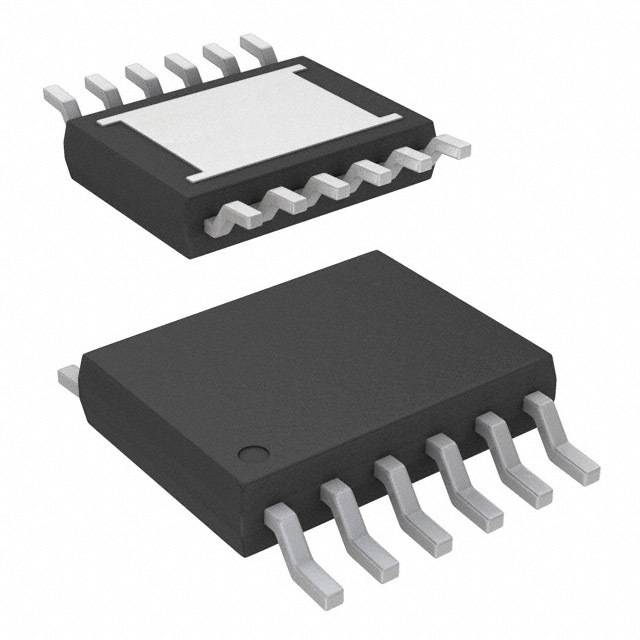

The LT3015EMSE#PBF, produced by Analog Devices Inc., is a low noise, low dropout, negative linear regulator. This device is part of the LT3015 series, which is designed to supply up to 1.5A of output current. It features fast transient response and is available in various packages, including the 12-lead MSOP package for the LT3015EMSE model. The regulator is suitable for applications requiring high current and low noise, making it ideal for industrial supplies, negative logic supplies, and low noise instrumentation.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Output Current | Up to 1.5 | A |
| Dropout Voltage | 300 mV (typical at 1.5A) | mV |
| Operating Junction Temperature Range | –40°C to 125°C | °C |
| Storage Temperature Range | –65°C to 150°C | °C |
| Lead Temperature (Soldering, 10sec) | 300°C (MSOP package) | °C |
| Package Type | 12-Lead MSOP |
Key Features
- Low noise operation, making it suitable for low noise instrumentation and other sensitive applications.
- Low dropout voltage, ensuring efficient regulation even at low input voltages.
- Fast transient response, which is crucial for applications requiring quick recovery from load changes.
- Available in various packages, including 5-Lead TO-220, DD-Pak, and 12-Lead MSOP, offering flexibility in design.
- Shutdown feature for power management and reduced standby current.
- Precision voltage regulation with adjustable output voltage options.
Applications
- Industrial supplies: Suitable for high current and low noise requirements in industrial settings.
- Negative logic supplies: Ideal for systems requiring negative voltage regulation.
- Low noise instrumentation: Used in applications where low noise is critical, such as in medical and scientific instruments.
- Post-regulator for switching supplies: Can be used to further regulate the output of switching power supplies.
Q & A
- What is the maximum output current of the LT3015EMSE#PBF? The maximum output current is up to 1.5A.
- What is the typical dropout voltage of the LT3015EMSE#PBF? The typical dropout voltage is 300 mV at 1.5A.
- What are the operating temperature ranges for the LT3015EMSE#PBF? The operating junction temperature range is –40°C to 125°C.
- What package types are available for the LT3015 series? The LT3015 series is available in 5-Lead TO-220, DD-Pak, 8-Lead DFN, and 12-Lead MSOP packages.
- Does the LT3015EMSE#PBF have a shutdown feature? Yes, it has a shutdown feature for power management.
- What are some common applications of the LT3015EMSE#PBF? Common applications include industrial supplies, negative logic supplies, and low noise instrumentation.
- How does the LT3015EMSE#PBF handle transient responses? It features fast transient response, which is beneficial for applications requiring quick recovery from load changes.
- Is the LT3015EMSE#PBF suitable for high noise environments? No, it is designed for low noise operation and is not suitable for high noise environments.
- Can the LT3015EMSE#PBF be used as a post-regulator for switching supplies? Yes, it can be used as a post-regulator to further regulate the output of switching power supplies.
- What is the storage temperature range for the LT3015EMSE#PBF? The storage temperature range is –65°C to 150°C.
