Overview
The LT1965IMS8E#TRPBF is a low-noise, low-dropout linear voltage regulator manufactured by Analog Devices Inc. This regulator is part of the LT1965 series, known for its high performance and reliability in various electronic systems. It is designed to supply up to 1.1A of output current with a typical dropout voltage of 310mV, making it suitable for applications requiring stable and efficient voltage regulation.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Output Current | 1.1A | TJ < 125°C |
| Typical Dropout Voltage | 310mV | VIN = VOUT(NOMINAL), ILOAD = 1.1A |
| Input Voltage Range | VOUT(NOMINAL) + 1V to VIN(max) | |
| Output Voltage Options | 1.5V, 1.8V, 2.5V, 3.3V | |
| Operating Temperature Range | –40°C to 125°C | |

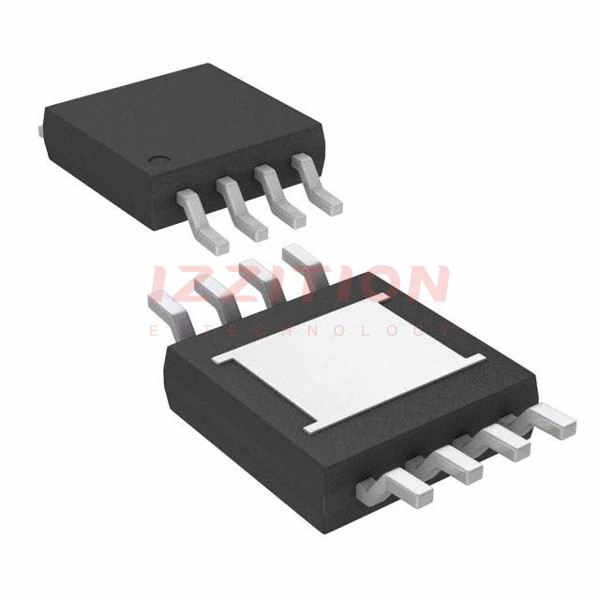

| Package Type | 8-Lead Plastic MSOP | |
| Thermal Resistance (θJA) | 60°C/W | |
| Thermal Resistance (θJC) | 10°C/W |
Key Features
- Low Noise: The LT1965IMS8E#TRPBF features low noise operation, making it suitable for noise-sensitive applications.
- Low Dropout Voltage: With a typical dropout voltage of 310mV, this regulator ensures efficient voltage regulation even at low input voltages.
- High Output Current: Capable of supplying up to 1.1A of output current, this regulator is ideal for powering high-current devices.
- Adjustable and Fixed Output Voltages: Available in both adjustable and fixed output voltage configurations (1.5V, 1.8V, 2.5V, 3.3V).
- Compact Package: The 8-Lead Plastic MSOP package is compact and suitable for space-constrained designs.
- Wide Operating Temperature Range: Operates over a temperature range of –40°C to 125°C, making it versatile for various environmental conditions.
Applications
- Power Supply Systems: Ideal for use in power supply systems requiring low noise and high efficiency.
- Industrial Control Systems: Suitable for industrial control systems where stable voltage regulation is critical.
- Medical Devices: Used in medical devices where low noise and reliability are essential.
- Aerospace and Defense: Applicable in aerospace and defense systems due to its wide operating temperature range and high reliability.
- Consumer Electronics: Can be used in consumer electronics such as audio equipment, GPS devices, and other portable electronics.
Q & A
- What is the typical dropout voltage of the LT1965IMS8E#TRPBF?
The typical dropout voltage is 310mV.
- What is the maximum output current of the LT1965IMS8E#TRPBF?
The maximum output current is 1.1A.
- What are the available output voltage options for the LT1965 series?
The available output voltage options are 1.5V, 1.8V, 2.5V, and 3.3V.
- What is the operating temperature range of the LT1965IMS8E#TRPBF?
The operating temperature range is –40°C to 125°C.
- What type of package does the LT1965IMS8E#TRPBF come in?
The LT1965IMS8E#TRPBF comes in an 8-Lead Plastic MSOP package.
- What is the thermal resistance (θJA) of the LT1965IMS8E#TRPBF?
The thermal resistance (θJA) is 60°C/W.
- Is the LT1965IMS8E#TRPBF suitable for noise-sensitive applications?
Yes, it is suitable due to its low noise operation.
- Can the LT1965IMS8E#TRPBF be used in industrial control systems?
Yes, it is suitable for industrial control systems due to its stable voltage regulation and reliability.
- What is the input voltage range for the LT1965IMS8E#TRPBF?
The input voltage range is VOUT(NOMINAL) + 1V to VIN(max).
- Is the LT1965IMS8E#TRPBF lead-free and RoHS compliant?
Yes, it is lead-free and RoHS compliant.
