Overview
The LT1880CS5#TRMPBF is a single-channel operational amplifier produced by Analog Devices Inc. This device is known for its high performance and versatility, making it suitable for a wide range of applications. It features a rail-to-rail output, low input bias current, and high speed, which are critical for various electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Input Bias Current | 150 pA |
| Slew Rate | 0.55 V/μs |
| Bandwidth | 1.1 MHz |
| Output Type | Rail-to-Rail |
| Vos (Offset Voltage) | 150 μV |

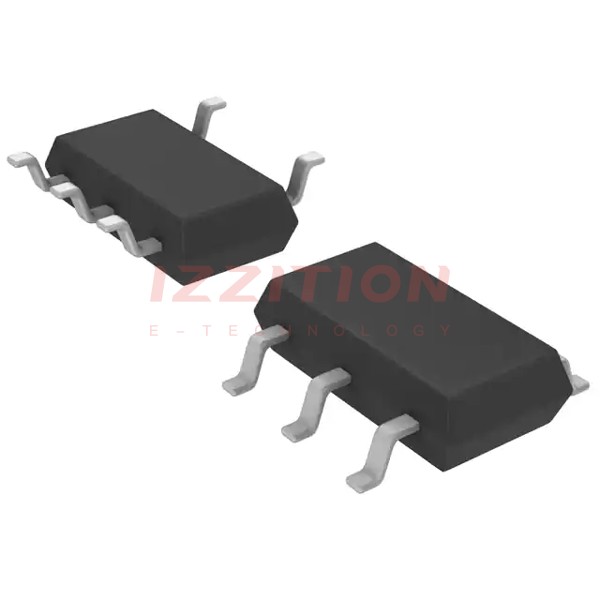

| Package Type | TSOT-23-5 |
| RoHS Compliance | Yes |
Key Features
- Rail-to-Rail Output: The LT1880CS5#TRMPBF can drive the output voltage to within a few millivolts of the supply rails, making it ideal for applications where maximum output swing is required.
- Low Input Bias Current: With an input bias current of 150 pA, this amplifier is suitable for high-impedance sources and applications requiring minimal current draw.
- High Speed: The device features a slew rate of 0.55 V/μs and a bandwidth of 1.1 MHz, making it suitable for high-speed applications.
- Low Offset Voltage: The amplifier has a low offset voltage of 150 μV, ensuring high accuracy in precision circuits.
Applications
- Audio and Video Circuits: The rail-to-rail output and high speed make it suitable for audio and video signal processing.
- Medical Devices: The low input bias current and high accuracy make it ideal for medical devices that require precise signal amplification.
- Industrial Control Systems: It can be used in various industrial control systems due to its robust performance and reliability.
- Automotive Systems: The device is also suitable for automotive applications where high performance and reliability are critical.
Q & A
- What is the input bias current of the LT1880CS5#TRMPBF?
The input bias current is 150 pA. - What is the slew rate of the LT1880CS5#TRMPBF?
The slew rate is 0.55 V/μs. - What is the bandwidth of the LT1880CS5#TRMPBF?
The bandwidth is 1.1 MHz. - Does the LT1880CS5#TRMPBF have rail-to-rail output?
Yes, it has rail-to-rail output. - What is the package type of the LT1880CS5#TRMPBF?
The package type is TSOT-23-5. - Is the LT1880CS5#TRMPBF RoHS compliant?
Yes, it is RoHS compliant. - What is the typical offset voltage of the LT1880CS5#TRMPBF?
The typical offset voltage is 150 μV. - In what types of applications is the LT1880CS5#TRMPBF commonly used?
It is commonly used in audio and video circuits, medical devices, industrial control systems, and automotive systems. - Where can I purchase the LT1880CS5#TRMPBF?
You can purchase it from suppliers such as Mouser, Digi-Key, and other authorized distributors. - What simulation software can be used to simulate the LT1880CS5#TRMPBF?
LTspice® can be used to simulate the LT1880CS5#TRMPBF.
