Overview

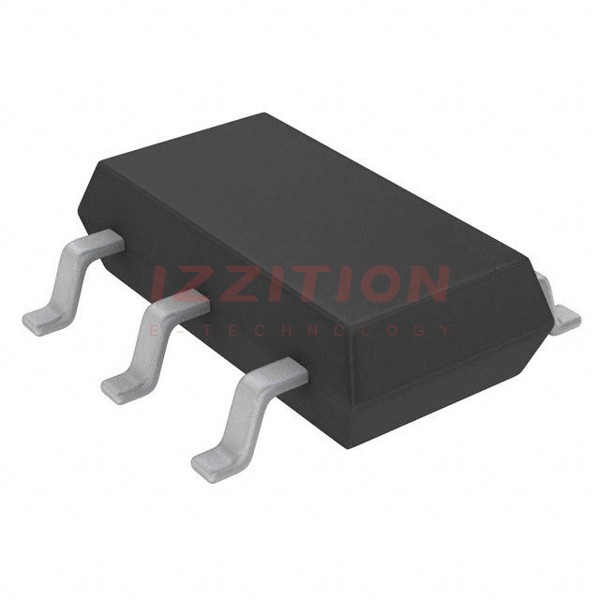

The LT1809IS6#TRMPBF is a single-channel, high-speed operational amplifier produced by Analog Devices Inc. This device is part of the LT1809 series, known for its low distortion and high performance. It features rail-to-rail input and output capabilities, making it suitable for a wide range of applications. The LT1809IS6#TRMPBF is housed in a 6-pin TSOT-23 package and is RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Input Offset Voltage (VOS) | VCM = V+ | 1 | 3.5 | 4.0 | mV |
| Input Offset Voltage Drift (VOS TC) | VCM = V+ | 9 | 25 | μV/°C | |
| Input Bias Current (IB) | VCM = V+ | -30 | 2 | μA | |
| Gain-Bandwidth Product (GBW) | Frequency = 2MHz | 145 | MHz | ||
| Slew Rate (SR) | VS = 5V, AV = –1, RL = 1k, VO = 4VP-P | 350 | V/μs | ||
| Full Power Bandwidth (FPBW) | VS = 5V, VOUT = 4VP-P | 20 | MHz | ||
| Operating Temperature Range | -40°C | 85°C | |||
| Junction Temperature | 150°C |
Key Features
- Rail-to-rail input and output capabilities, ensuring full signal swing over the supply voltage range.
- High slew rate of 350V/μs, suitable for high-speed applications.
- Low distortion, making it ideal for audio and video signal processing.
- High gain-bandwidth product of 145MHz, enabling high-frequency operation.
- Full power bandwidth of 20MHz, supporting high-frequency signal handling.
- Low input offset voltage and drift, ensuring high accuracy and stability.
- Compact 6-pin TSOT-23 package, suitable for space-constrained designs.
- RoHS compliant, ensuring environmental sustainability.
Applications
- Low voltage signal processing
- Active filters
- Rail-to-rail buffer amplifiers
- Video line drivers
- AUDIO and video signal processing
- High-speed data acquisition systems
- Automotive and industrial control systems
Q & A
- What is the slew rate of the LT1809IS6#TRMPBF?
The slew rate of the LT1809IS6#TRMPBF is 350V/μs.
- What is the gain-bandwidth product of this amplifier?
The gain-bandwidth product is 145MHz.
- What is the full power bandwidth of the LT1809IS6#TRMPBF?
The full power bandwidth is 20MHz.
- What is the operating temperature range of this device?
The operating temperature range is -40°C to 85°C.
- Is the LT1809IS6#TRMPBF RoHS compliant?
Yes, the LT1809IS6#TRMPBF is RoHS compliant.
- What package type is the LT1809IS6#TRMPBF available in?
The LT1809IS6#TRMPBF is available in a 6-pin TSOT-23 package.
- What are some typical applications of the LT1809IS6#TRMPBF?
Typical applications include low voltage signal processing, active filters, rail-to-rail buffer amplifiers, and video line drivers.
- What is the input offset voltage of the LT1809IS6#TRMPBF?
The input offset voltage is typically 3.5mV.
- How does the LT1809IS6#TRMPBF handle high-frequency signals?
The device handles high-frequency signals well due to its high gain-bandwidth product and full power bandwidth.
- Is the LT1809IS6#TRMPBF suitable for automotive applications?
Yes, the LT1809IS6#TRMPBF is suitable for automotive applications due to its wide operating temperature range and robust performance.
