Overview
The LT1013DN8#PBF is a high-quality precision dual operational amplifier (op amp) manufactured by Analog Devices Inc. This component is designed to offer superior performance and reliability, making it an excellent choice for a wide range of electronic designs. It is particularly suited for applications requiring precision, low power consumption, and dual channel operation.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Input Offset Voltage (VOS) | 40 - 150 | µV |
| Input Offset Current (ISO) | 0.15 - 1.5 | nA |
| Input Bias Current (IB) | 12 - 30 | nA |
| Common Mode Rejection Ratio | 97 | dB |
| Bandwidth | 800 kHz | |
| Supply Voltage | ±15V, 5V | V |
| Operating Temperature Range | 0°C to 70°C | °C |
| Package Type | PDIP-8 |
Key Features
- Single Supply Operation: Can operate off a single 5V power supply with input common mode range extending to ground and output swinging to within a few millivolts of ground.
- Precision Specifications: Guaranteed offset voltage of 150µV max, low drift of 2µV/°C max, and high gain with a minimum of 1.5 million at 5mA load current.
- Precision and Reliability: Designed for high accuracy and reliability, making it suitable for industrial and automotive systems.
- Dual Channel Operation: Features two independent operational amplifiers in a single package.
- Pin Compatibility: Pin compatible with industry-standard devices like the MC1458 and LM324.
Applications
The LT1013DN8#PBF is versatile and can be used in a variety of applications, including:
- Industrial control systems
- Automotive systems
- Medical devices
- Audio and video equipment
- General-purpose amplification in precision circuits
Q & A
- What is the input offset voltage of the LT1013DN8#PBF?
The input offset voltage is between 40µV and 150µV. - Can the LT1013DN8#PBF operate on a single supply voltage?
Yes, it can operate off a single 5V power supply. - What is the common mode rejection ratio of the LT1013DN8#PBF?
The common mode rejection ratio is 97 dB. - What is the bandwidth of the LT1013DN8#PBF?
The bandwidth is 800 kHz. - What is the operating temperature range of the LT1013DN8#PBF?
The operating temperature range is 0°C to 70°C. - Is the LT1013DN8#PBF RoHS compliant?
Yes, the LT1013DN8#PBF is RoHS compliant. - What package type does the LT1013DN8#PBF come in?

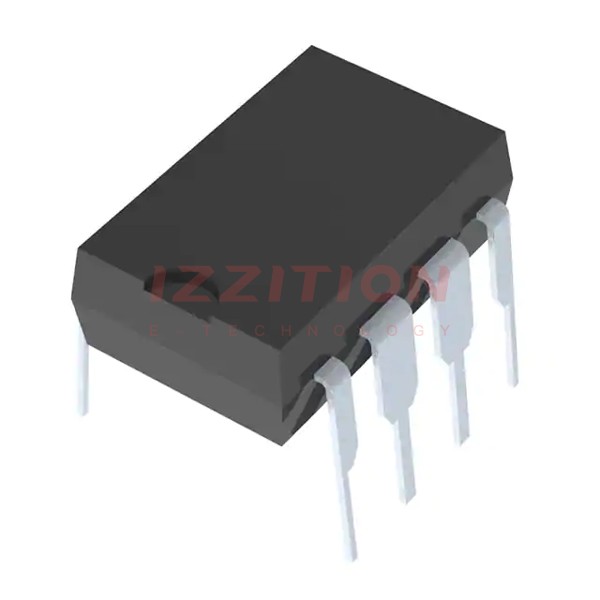

The LT1013DN8#PBF comes in an 8-pin PDIP package. - What are some typical applications of the LT1013DN8#PBF?
Typical applications include industrial control systems, automotive systems, medical devices, and general-purpose amplification in precision circuits. - Is the LT1013DN8#PBF pin compatible with other industry-standard op amps?
Yes, it is pin compatible with devices like the MC1458 and LM324. - What is the input bias current of the LT1013DN8#PBF?
The input bias current is between 12nA and 30nA.
