Overview
The JM38510/14002BXA is a 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This integrated circuit is designed to convert continuous analog signals into discrete digital signals, which can then be processed and analyzed by digital systems. The conversion process involves sampling, holding, quantization, and encoding the analog signal into a binary digital format. This ADC is particularly noted for its precision and reliability, making it suitable for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | JM38510/14002BXA |

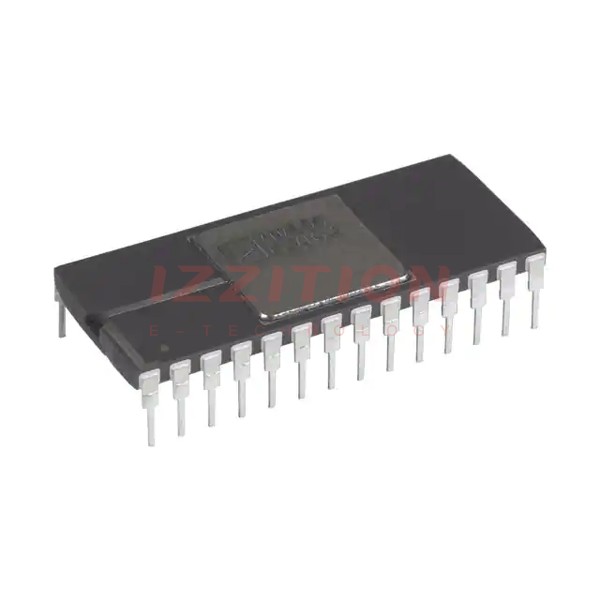

| Package | 28-Lead CerDIP (Side Brazed) |
| Number of Bits | 12-bit |
| Conversion Technique | Successive Approximation |
| Temperature Range | -55°C to +125°C (for S, T, and U grades) |
| Voltage Reference | Implanted buried Zener for low noise and low drift |
| Digital Logic | I²L logic for successive-approximation register and control circuitry |
Key Features
- Precision Conversion: The JM38510/14002BXA features active laser-trimming of thin-film resistors to minimize offset, linearity, and scaling errors.
- Reliable Voltage Reference: Uses an implanted buried Zener for low noise and low drift.
- Durable Packaging: Available in hermetically-sealed ceramic DIP, ensuring robustness and reliability in various environments.
- Wide Temperature Range: Operates over a temperature range of -55°C to +125°C for certain grades, making it suitable for harsh environments.
- Advanced Digital Logic: Utilizes I²L logic for the successive-approximation register, control circuitry, and 3-state output buffers.
Applications
- Communication Systems: Used in various communication equipment for precise signal conversion.
- Industrial Control: Employed in industrial control systems for accurate data acquisition and processing.
- Measuring Instruments: Utilized in measurement instruments requiring high precision and reliability.
- Consumer Electronics: Found in consumer electronic devices that require accurate analog-to-digital conversion.
- Medical Instruments: Used in medical devices where precise signal conversion is critical.
- Audio Processing: Applied in audio processing systems for high-quality signal conversion.
- Automotive Electronics: Employed in automotive systems for reliable and precise data acquisition.
Q & A
- What is the primary function of the JM38510/14002BXA?
The primary function of the JM38510/14002BXA is to convert analog signals into digital signals.
- What is the number of bits in the JM38510/14002BXA ADC?
The JM38510/14002BXA is a 12-bit analog-to-digital converter.
- What type of packaging is available for the JM38510/14002BXA?
The JM38510/14002BXA is available in 28-Lead CerDIP (Side Brazed) packaging.
- What is the temperature range for the JM38510/14002BXA?
The temperature range for the JM38510/14002BXA is -55°C to +125°C for certain grades.
- What conversion technique does the JM38510/14002BXA use?
The JM38510/14002BXA uses the successive approximation conversion technique.
- What type of digital logic is used in the JM38510/14002BXA?
The JM38510/14002BXA uses I²L logic for the successive-approximation register and control circuitry.
- What are some common applications of the JM38510/14002BXA?
Common applications include communication systems, industrial control, measuring instruments, consumer electronics, medical instruments, audio processing, and automotive electronics.
- How does the JM38510/14002BXA ensure precision in its conversions?
The JM38510/14002BXA ensures precision through active laser-trimming of thin-film resistors and the use of an implanted buried Zener for low noise and low drift.
- Is the JM38510/14002BXA suitable for harsh environments?
Yes, the JM38510/14002BXA is suitable for harsh environments due to its wide temperature range and robust packaging.
- What are the different grades available for the JM38510/14002BXA?
The JM38510/14002BXA is available in various grades, including AD574AJ, K, L, S, T, and U, each with different temperature specifications and packaging options.
