Overview
The HMC914LP4ETR is a high-performance integrated circuit produced by Analog Devices Inc. This component is part of the company's extensive range of analog and mixed-signal ICs. The HMC914LP4ETR is specifically designed for applications requiring high precision and reliability.
Key Specifications
| Parameter | Value |
|---|---|

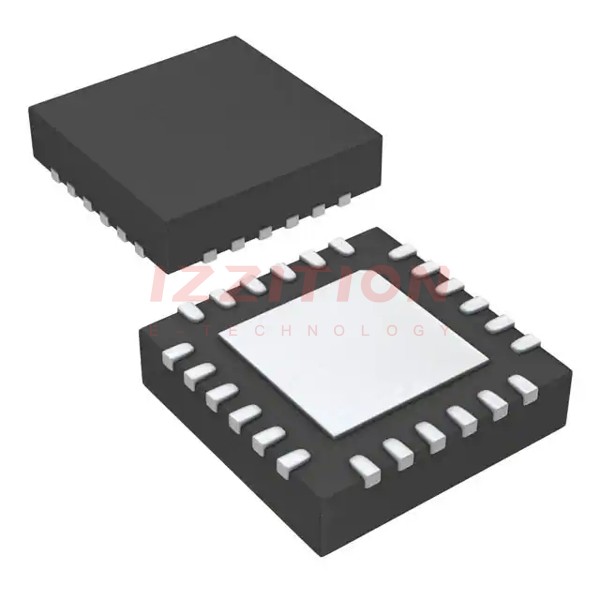

| Package | 24-VFQFN Exposed Pad |
| Number of Pins | 24 |
| Number of Circuits | 1 |
| Operating Supply Current | 47 mA |
| Supply Voltage | 4.6V~5.4V |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- High precision and reliability, making it suitable for demanding applications.
- Compact 24-VFQFN Exposed Pad package, ideal for space-constrained designs.
- Single supply voltage operation between 4.6V and 5.4V.
- Low operating supply current of 47 mA.
- Compliant with ROHS3 regulations, ensuring environmental sustainability.
Applications
- Test and measurement equipment: The high precision of the HMC914LP4ETR makes it a good fit for test and measurement applications.
- Industrial control systems: Its reliability and precision are beneficial in industrial control environments.
- Aerospace and defense: The component's robustness and compliance with environmental regulations make it suitable for aerospace and defense applications.
- Medical devices: The high accuracy and low noise characteristics are advantageous in medical device designs.
Q & A
- What is the package type of the HMC914LP4ETR?
The HMC914LP4ETR comes in a 24-VFQFN Exposed Pad package. - What is the supply voltage range for the HMC914LP4ETR?
The supply voltage range is between 4.6V and 5.4V. - What is the operating supply current of the HMC914LP4ETR?
The operating supply current is 47 mA. - Is the HMC914LP4ETR ROHS compliant?
Yes, the HMC914LP4ETR is ROHS3 compliant. - What is the moisture sensitivity level (MSL) of the HMC914LP4ETR?
The MSL is 1 (Unlimited). - What are some typical applications for the HMC914LP4ETR?
Typical applications include test and measurement equipment, industrial control systems, aerospace and defense, and medical devices. - Is the HMC914LP4ETR still in production?
No, the HMC914LP4ETR is no longer manufactured. Users should consider substitutes or alternative package types. - Where can I find more detailed specifications for the HMC914LP4ETR?
You can find detailed specifications in the datasheet available on the Analog Devices website or through distributors like Digi-Key. - What is the significance of the 'Exposed Pad' in the package type?
The 'Exposed Pad' helps in heat dissipation and can be used for grounding, improving the overall thermal and electrical performance of the component. - Can I use the HMC914LP4ETR in high-temperature environments?
While the component is robust, it is important to refer to the datasheet for specific temperature ratings and operating conditions.
