Overview

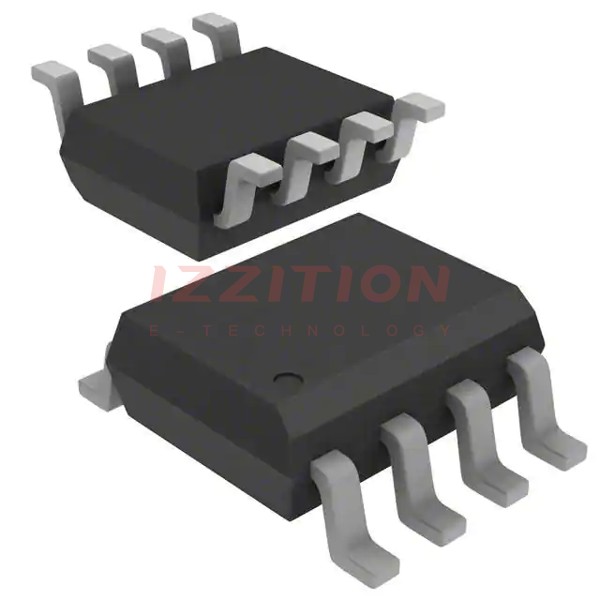

The DAC8512FS-REEL is a 12-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed for various industrial and scientific applications that require high precision and reliability. The DAC8512FS-REEL is packaged in an 8-lead SOIC (Small Outline Integrated Circuit) package, making it suitable for a wide range of applications where space is a consideration.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Package Type | 8-lead SOIC |
| Supply Voltage | 5V |
| Output Type | Serial Load (SRL) |
| Operating Temperature | Typically -40°C to 85°C |
Key Features
- High resolution of 12 bits for precise analog output
- Compact 8-lead SOIC package for space-efficient designs
- Single 5V supply voltage for simplicity in system design
- Serial load (SRL) output for easy integration with microcontrollers and other digital systems
- Wide operating temperature range, typically from -40°C to 85°C, making it suitable for various environmental conditions
Applications
The DAC8512FS-REEL is versatile and can be used in a variety of applications, including:
- Industrial control systems where precise analog outputs are required
- Scientific instruments that demand high accuracy and reliability
- Automotive systems where robustness and wide temperature range are essential
- Medical devices that require precise and stable analog signals
- Consumer electronics where compact size and low power consumption are beneficial
Q & A
- What is the resolution of the DAC8512FS-REEL?
The DAC8512FS-REEL has a resolution of 12 bits. - What is the package type of the DAC8512FS-REEL?
The DAC8512FS-REEL is packaged in an 8-lead SOIC. - What is the supply voltage for the DAC8512FS-REEL?
The supply voltage for the DAC8512FS-REEL is 5V. - What is the output type of the DAC8512FS-REEL?
The output type of the DAC8512FS-REEL is serial load (SRL). - What is the operating temperature range of the DAC8512FS-REEL?
The operating temperature range of the DAC8512FS-REEL is typically from -40°C to 85°C. - Where can I find the datasheet for the DAC8512FS-REEL?
You can find the datasheet for the DAC8512FS-REEL on the official Analog Devices Inc. website or through authorized distributors. - Is the DAC8512FS-REEL suitable for industrial applications?
Yes, the DAC8512FS-REEL is designed for various industrial applications due to its high precision and reliability. - Can the DAC8512FS-REEL be used in automotive systems?
Yes, the DAC8512FS-REEL can be used in automotive systems due to its robustness and wide operating temperature range. - How do I integrate the DAC8512FS-REEL with a microcontroller?
The DAC8512FS-REEL can be integrated with a microcontroller using its serial load (SRL) output, which simplifies the communication interface. - What are the benefits of using the DAC8512FS-REEL in consumer electronics?
The benefits include its compact size, low power consumption, and high precision, making it suitable for consumer electronics where space and power efficiency are important.
