Overview

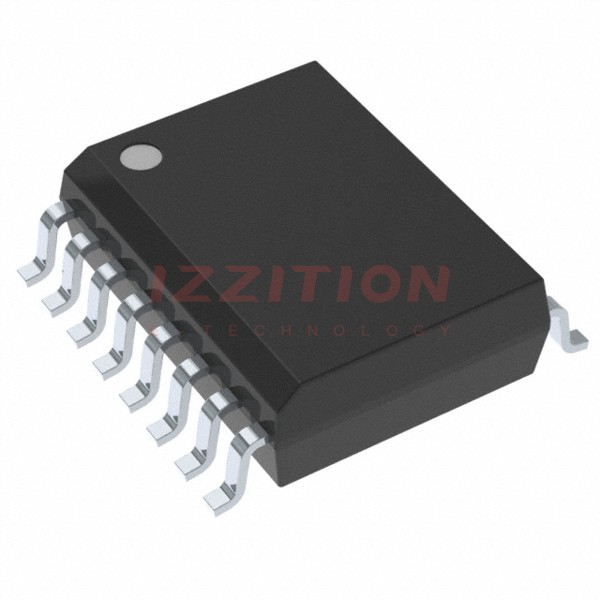

The ADUM5000ARWZ-RL is an isolated DC/DC converter produced by Analog Devices Inc., utilizing the company's iCoupler technology. This device provides a regulated, isolated power supply, making it suitable for applications requiring high isolation and reliability. The ADUM5000ARWZ-RL is packaged in a SOIC-16-300mil form factor and is compliant with ROHS standards.
Key Specifications
| Parameter | Value |
|---|---|
| Isolation Voltage | 2.5 kV |
| Output Voltage | 5.0 V or 3.3 V (depending on the model variant) |
| Output Current | Up to 500 mA |
| Package Type | SOIC-16-300mil |
| Operating Temperature Range | -40°C to +105°C |
| Compliance | ROHS compliant |
Key Features
- High isolation voltage of 2.5 kV, ensuring reliable operation in noisy environments.
- Regulated output voltage options of 5.0 V or 3.3 V.
- High output current capability of up to 500 mA.
- Compact SOIC-16-300mil package.
- Wide operating temperature range from -40°C to +105°C.
- Utilizes Analog Devices' iCoupler technology for digital isolation.
Applications
- Industrial I/O and control systems.
- Automotive interfaces (e.g., CAN, audio, Ethernet).
- Medical devices requiring high isolation.
- Industrial automation and control systems.
- IO-Link and other industrial communication protocols.
Q & A
- What is the isolation voltage of the ADUM5000ARWZ-RL? The isolation voltage is 2.5 kV.
- What are the available output voltage options for the ADUM5000ARWZ-RL? The output voltage options are 5.0 V or 3.3 V.
- What is the maximum output current of the ADUM5000ARWZ-RL? The maximum output current is up to 500 mA.
- What is the package type of the ADUM5000ARWZ-RL? The package type is SOIC-16-300mil.
- Is the ADUM5000ARWZ-RL ROHS compliant? Yes, it is ROHS compliant.
- What is the operating temperature range of the ADUM5000ARWZ-RL? The operating temperature range is from -40°C to +105°C.
- What technology does the ADUM5000ARWZ-RL use for isolation? It uses Analog Devices' iCoupler technology for digital isolation.
- In which applications is the ADUM5000ARWZ-RL commonly used? It is commonly used in industrial I/O, automotive interfaces, medical devices, and industrial automation.
- Where can I find detailed specifications for the ADUM5000ARWZ-RL? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser.
- Is the ADUM5000ARWZ-RL suitable for high-reliability applications? Yes, it is designed for high-reliability applications due to its high isolation voltage and robust construction.
