Overview
The ADUC7039BCP6Z-RL is an integrated, precision battery sensor designed for automotive systems, manufactured by Analog Devices Inc. This microcontroller is part of the ADuC7xxx MicroConverter series and combines the functionality of a microcontroller with precision analog peripherals. It is particularly suited for battery management and monitoring applications in the automotive sector.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 20.48MHz |
| Memory | 64KB (32K x 16) FLASH |

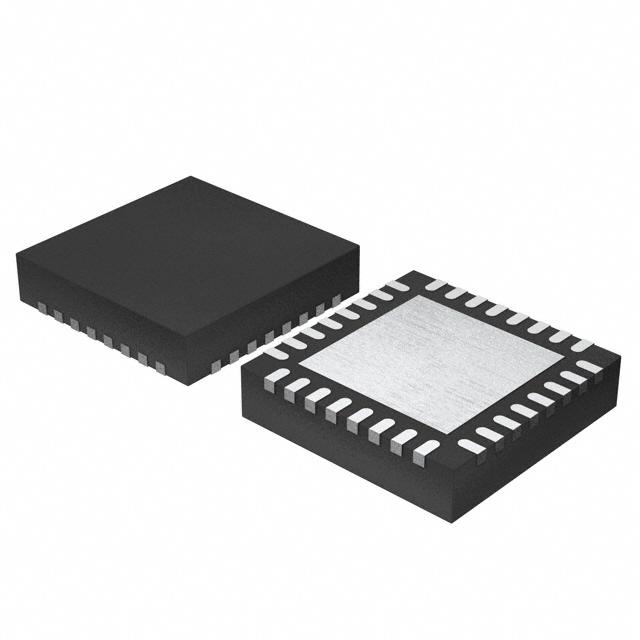

| Package Type | 32-LFCSP-VQ (6x6) |
Key Features
- Precision battery sensing capabilities, making it ideal for automotive battery management systems.
- Integrated ARM7® microcontroller for robust processing and control.
- High-speed operation at 20.48MHz.
- 64KB of FLASH memory for program storage.
- Compact 32-LFCSP-VQ package for space-efficient designs.
Applications
The ADUC7039BCP6Z-RL is primarily used in automotive systems for battery management and monitoring. It can be applied in various automotive applications such as:
- Battery state of charge (SOC) and state of health (SOH) monitoring.
- Battery voltage and temperature sensing.
- Automotive power management systems.
Q & A
- What is the core processor of the ADUC7039BCP6Z-RL?
The core processor is an ARM7® microcontroller. - What is the operating speed of the ADUC7039BCP6Z-RL?
The operating speed is 20.48MHz. - How much FLASH memory does the ADUC7039BCP6Z-RL have?
The device has 64KB (32K x 16) of FLASH memory. - What is the package type of the ADUC7039BCP6Z-RL?
The package type is 32-LFCSP-VQ (6x6). - What are the primary applications of the ADUC7039BCP6Z-RL?
The primary applications include automotive battery management and monitoring systems. - Is the ADUC7039BCP6Z-RL suitable for high-temperature environments?
Yes, it is designed to operate in the automotive environment which includes a range of temperatures. - Does the ADUC7039BCP6Z-RL support precision analog measurements?
Yes, it is designed for precision battery sensing and includes integrated analog peripherals. - Where can I find detailed specifications for the ADUC7039BCP6Z-RL?
Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser. - Is the ADUC7039BCP6Z-RL available for immediate shipment?
Yes, it is available for shipping from various distributors such as Heisener and Digi-Key. - What is the part status of the ADUC7039BCP6Z-RL?
The part status is active.
