Overview
The ADUC7033BSTZ-88-RL is a high-performance microcontroller from Analog Devices Inc., part of the MicroConverter ADuC7xxx family. This device integrates an ARM7TDMI core with a rich set of peripherals, making it suitable for various applications in industrial automation, medical devices, and consumer electronics. The microcontroller operates at a clock speed of 20.48 MHz and features flash-based program memory with a capacity of 96 KB (48K x 16). It is designed to operate directly from a 12 V battery supply and includes multiple interfaces such as LINbus, SPI, and UART/USART for communication with other devices or peripherals.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Core Processor | ARM7TDMI | |
| Core Size | 16/32-Bit | |
| Speed | 20.48 MHz | |
| Program Memory Size | 96 KB (48K x 16) | |
| Program Memory Type | FLASH | |
| RAM Size | 6 kB SRAM | |
| Voltage - Supply (Vcc/Vdd) | 3.5 V ~ 18 V | |
| Data Converters | 3x16-bit Σ-Δ ADCs | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 115°C | |

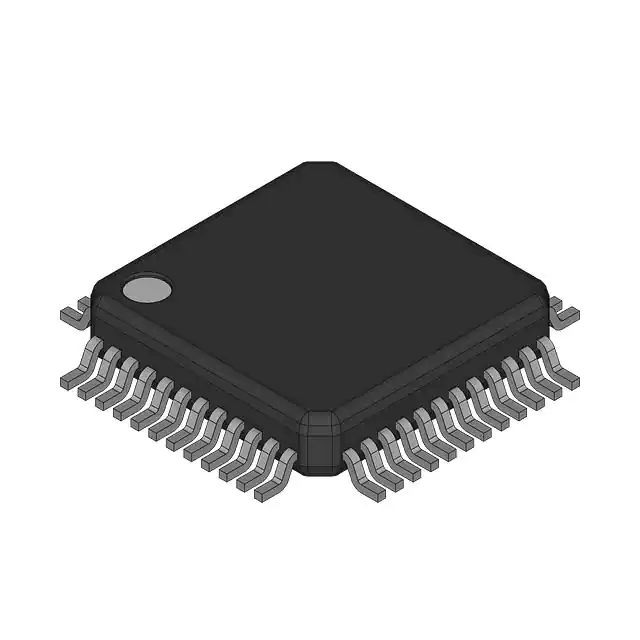

| Package/Case | 48-Lead Low Profile Quad Flat Package (LQFP) | |
| Number of I/O | 9 | |
| Connectivity | LINbus, SPI, UART/USART | |
| Peripherals | POR, PSM, Temp Sensor, WDT |
Key Features
- ARM7 Core Processor: 16/32-bit ARM7TDMI core with a clock speed of 20.48 MHz.
- Program Memory: Flash-based program memory with 96 KB (48K x 16) capacity.
- ADCs: Dual channel, simultaneous sampling, 16-bit Σ-Δ ADCs with programmable throughput from 1 Hz to 8 kHz.
- Interfaces: LINbus, SPI, UART/USART for communication with other devices or peripherals.
- Peripherals: Power-on reset, partial sleep mode, temperature sensor, and watchdog timer.
- I/O Pins: 9 I/O pins for peripheral connectivity.
- Operating Voltage: Operates directly from a 12 V battery supply with a voltage range of 3.5 V to 18 V.
Applications
- Automated Test Equipment: Suitable for automated testing in various industrial and consumer applications.
- Industrial Control Systems: Used in industrial automation for control and monitoring.
- Consumer Electronics: Applied in consumer electronics for robust and reliable operation.
- Medical Devices: Utilized in medical devices requiring precise and reliable microcontroller functionality.
- Other Industrial Applications: General use in other industrial settings where high-performance microcontrollers are needed.
Q & A
- What is the core processor of the ADUC7033BSTZ-88-RL?
The core processor is the ARM7TDMI, which is a 16/32-bit RISC architecture.
- What is the clock speed of the ADUC7033BSTZ-88-RL?
The clock speed is 20.48 MHz.
- What type of program memory does the ADUC7033BSTZ-88-RL have?
The program memory is flash-based with a capacity of 96 KB (48K x 16).
- What are the key interfaces of the ADUC7033BSTZ-88-RL?
The key interfaces include LINbus, SPI, and UART/USART.
- What is the operating temperature range of the ADUC7033BSTZ-88-RL?
The operating temperature range is -40°C to 115°C.
- What type of package does the ADUC7033BSTZ-88-RL come in?
The package is a 48-Lead Low Profile Quad Flat Package (LQFP).
- How many I/O pins does the ADUC7033BSTZ-88-RL have?
The device has 9 I/O pins.
- What are the key peripherals of the ADUC7033BSTZ-88-RL?
The key peripherals include power-on reset, partial sleep mode, temperature sensor, and watchdog timer.
- What is the voltage supply range for the ADUC7033BSTZ-88-RL?
The voltage supply range is 3.5 V to 18 V.
- What types of applications is the ADUC7033BSTZ-88-RL suitable for?
The device is suitable for automated test equipment, industrial control systems, consumer electronics, medical devices, and other industrial applications.
