ADP7118AUJZ-3.3-R7
  • Share:

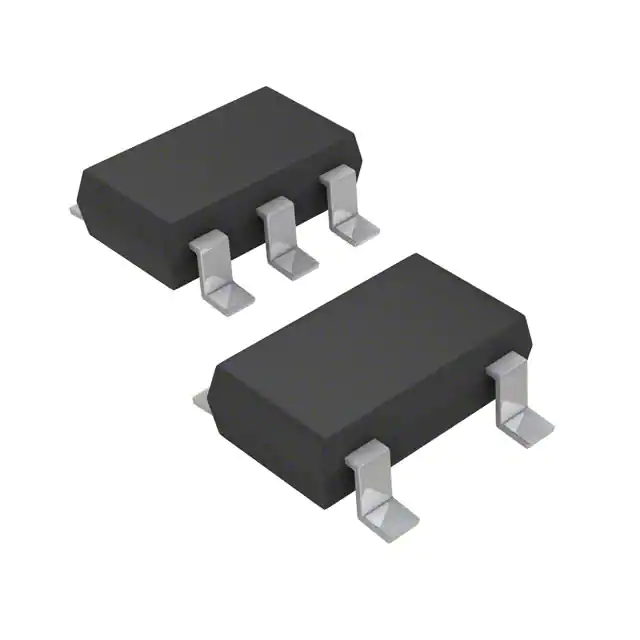

Analog Devices Inc. ADP7118AUJZ-3.3-R7

Manufacturer No:
ADP7118AUJZ-3.3-R7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC REG LIN 3.3V 200MA TSOT23-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADP7118AUJZ-3.3-R7 is a CMOS, low dropout (LDO) linear regulator produced by Analog Devices Inc. This device operates from an input voltage range of 2.7V to 20V and provides up to 200mA of output current. It is designed for the regulation of high-performance analog and mixed-signal circuits, offering high power supply rejection, low noise, and excellent line and load transient response. The ADP7118AUJZ-3.3-R7 is particularly suited for applications requiring stable and low-noise voltage regulation, such as noise-sensitive circuits, communications, medical devices, and industrial instrumentation.

Key Specifications

Parameter Value
Input Voltage Range 2.7V to 20V
Output Voltage 3.3V (fixed)
Output Current Up to 200mA
Dropout Voltage 200mV (typical at IOUT = 200mA)
Output Noise 11µVrms (10Hz to 100kHz)
Power Supply Rejection Ratio (PSRR) 88dB at 10kHz, 68dB at 100kHz, 50dB at 1MHz (VOUT ≤ 5V, VIN = 7V)
Initial Accuracy ±0.8%
Quiescent Current 50µA (typical) with no load
Shutdown Current 3µA (typical at EN = GND, VIN = 20V)
Operating Temperature Range -40°C to +125°C
Package Type 5-lead TSOT

Key Features

  • High power supply rejection ratio (PSRR) for stable output voltage.
  • Low noise output of 11µVrms independent of the fixed output voltage.
  • Excellent line and load transient response with a small 2.2µF ceramic output capacitor.
  • Precision enable feature for controlled startup and shutdown.
  • Low quiescent current of 50µA (typical) with no load.
  • Typical shutdown current of 3µA at EN = GND, VIN = 20V.
  • Adjustable output voltage using an external feedback divider.

Applications

  • Noise-sensitive applications requiring low-noise voltage regulation.
  • Communications and infrastructure systems.
  • Medical and healthcare devices.
  • Industrial and instrumentation systems.
  • High-performance analog and mixed-signal circuits.

Q & A

  1. What is the input voltage range of the ADP7118AUJZ-3.3-R7?

    The input voltage range is from 2.7V to 20V.

  2. What is the maximum output current of the ADP7118AUJZ-3.3-R7?

    The maximum output current is up to 200mA.

  3. What is the typical dropout voltage of the ADP7118AUJZ-3.3-R7?

    The typical dropout voltage is 200mV at IOUT = 200mA.

  4. What is the power supply rejection ratio (PSRR) of the ADP7118AUJZ-3.3-R7?

    The PSRR is 88dB at 10kHz, 68dB at 100kHz, and 50dB at 1MHz (VOUT ≤ 5V, VIN = 7V).

  5. What is the typical output noise of the ADP7118AUJZ-3.3-R7?

    The typical output noise is 11µVrms from 10Hz to 100kHz.

  6. What is the operating temperature range of the ADP7118AUJZ-3.3-R7?

    The operating temperature range is -40°C to +125°C.

  7. What package type is the ADP7118AUJZ-3.3-R7 available in?

    The device is available in a 5-lead TSOT package.

  8. Can the output voltage of the ADP7118AUJZ-3.3-R7 be adjusted?
  9. What are some typical applications for the ADP7118AUJZ-3.3-R7?
  10. What is the quiescent current of the ADP7118AUJZ-3.3-R7 with no load?
  11. What is the shutdown current of the ADP7118AUJZ-3.3-R7?

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):-
Voltage Dropout (Max):0.42V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):140 µA
Current - Supply (Max):320 µA
PSRR:88dB ~ 50dB (10kHz ~ 1MHz)
Control Features:Enable, Soft Start
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:TSOT-23-5
0 Remaining View Similar

In Stock

$2.85
200

Please send RFQ , we will respond immediately.

Same Series
TSW-105-07-S-D-009
TSW-105-07-S-D-009
CONN HEADER VERT 10POS 2.54MM
TSW-105-08-T-D
TSW-105-08-T-D
CONN HEADER VERT 10POS 2.54MM
TSW-118-14-T-S
TSW-118-14-T-S
CONN HEADER VERT 18POS 2.54MM
TSW-112-08-L-S-RA
TSW-112-08-L-S-RA
CONN HEADER R/A 12POS 2.54MM
TSW-119-23-L-S
TSW-119-23-L-S
CONN HEADER VERT 19POS 2.54MM
TSW-122-08-L-S-RA
TSW-122-08-L-S-RA
CONN HEADER R/A 22POS 2.54MM
TSW-113-08-L-D-RA
TSW-113-08-L-D-RA
CONN HEADER R/A 26POS 2.54MM
TSW-128-08-T-D
TSW-128-08-T-D
CONN HEADER VERT 56POS 2.54MM
TSW-127-05-S-S
TSW-127-05-S-S
CONN HEADER VERT 27POS 2.54MM
TSW-123-08-G-D-RA
TSW-123-08-G-D-RA
CONN HEADER R/A 46POS 2.54MM
TSW-140-23-S-S
TSW-140-23-S-S
CONN HEADER VERT 40POS 2.54MM
TSW-145-07-S-D
TSW-145-07-S-D
CONN HEADER VERT 90POS 2.54MM

Similar Products

Part Number ADP7118AUJZ-3.3-R7 ADP7118WAUJZ-3.3-R7
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Active Active
Output Configuration Positive Positive
Output Type Fixed Fixed
Number of Regulators 1 1
Voltage - Input (Max) 20V 20V
Voltage - Output (Min/Fixed) 3.3V 3.3V
Voltage - Output (Max) - -
Voltage Dropout (Max) 0.42V @ 200mA 0.42V @ 200mA
Current - Output 200mA 200mA
Current - Quiescent (Iq) 140 µA 140 µA
Current - Supply (Max) 320 µA 320 µA
PSRR 88dB ~ 50dB (10kHz ~ 1MHz) 88dB ~ 50dB (10kHz ~ 1MHz)
Control Features Enable, Soft Start Enable, Soft Start
Protection Features Over Current, Over Temperature Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C (TA) -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount
Package / Case SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5
Supplier Device Package TSOT-23-5 TSOT-23-5
