Overview

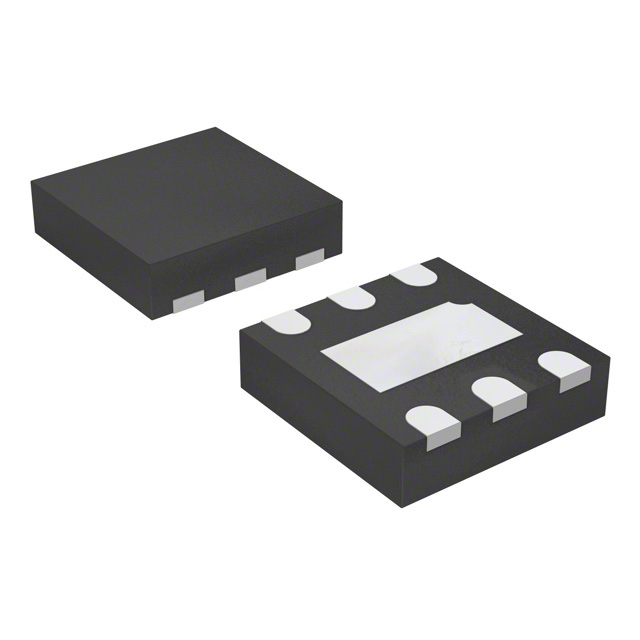

The ADP7118ACPZN2.5-R7 is a CMOS, low dropout (LDO) linear regulator produced by Analog Devices Inc. This high-input-voltage LDO operates from 2.7V to 20V and provides up to 200mA of output current. It is designed for the regulation of high-performance analog and mixed-signal circuits, operating from 19V down to 1.2V rails. The device features high power supply rejection, low noise, and excellent line and load transient response with a small 2.2µF ceramic output capacitor. The regulator's output noise is 11μV rms for fixed output voltages of 5V or less, making it suitable for noise-sensitive applications such as ADC and DAC circuits, precision amplifiers, and VCO VTUNE control.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | ADP7118 |
| Part Number | ADP7118ACPZN2.5-R7 |
| Output Voltage | 2.5V (Fixed) |
| Output Current | 200mA |
| Input Voltage Range | 2.7V to 20V |
| Dropout Voltage | 0.42V @ 200mA |
| Quiescent Current | 140 µA |
| PSRR | 88dB ~ 50dB (10kHz ~ 1MHz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C to 125°C |
| Package/Case | LFCSP-6 |
Key Features
- Low power consumption
- Safe operating temperature range
- High efficiency converter
- Pulse width modulation control
- Soft start feature enabled
- Fully protected against overcurrent and overtemperature
- High power supply rejection ratio (PSRR)
- Low noise output (11μV rms for fixed output voltages of 5V or less)
Applications
- Noise-sensitive applications such as ADC and DAC circuits, precision amplifiers, and VCO VTUNE control
- Communications and infrastructure
- Medical and healthcare
- Industrial and instrumentation
- Precision instrumentation requiring stable voltage control
- Industrial strength power applications
Q & A
- What is the input voltage range of the ADP7118ACPZN2.5-R7?
The input voltage range is from 2.7V to 20V.
- What is the maximum output current of the ADP7118ACPZN2.5-R7?
The maximum output current is 200mA.
- What is the output voltage of the ADP7118ACPZN2.5-R7?
The output voltage is fixed at 2.5V.
- What is the quiescent current of the ADP7118ACPZN2.5-R7?
The quiescent current is 140 µA.
- What are the protection features of the ADP7118ACPZN2.5-R7?
The device is fully protected against overcurrent and overtemperature.
- What is the operating temperature range of the ADP7118ACPZN2.5-R7?
The operating temperature range is from -40°C to 125°C.
- What is the package type of the ADP7118ACPZN2.5-R7?
The package type is LFCSP-6.
- What are some typical applications of the ADP7118ACPZN2.5-R7?
Typical applications include noise-sensitive circuits, communications, medical and healthcare, industrial, and precision instrumentation.
- What is the PSRR of the ADP7118ACPZN2.5-R7?
The PSRR is 88dB ~ 50dB from 10kHz to 1MHz.
- Does the ADP7118ACPZN2.5-R7 have a soft start feature?
Yes, the device has a soft start feature enabled.
