Analog Devices Inc. ADP7102ACPZ-R7

Manufacturer No:
ADP7102ACPZ-R7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC REG LIN POS ADJ 300MA 8LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADP7102ACPZ-R7 is a CMOS, low dropout linear voltage regulator (LDO) produced by Analog Devices Inc. This regulator is designed to operate from an input voltage range of 3.3 V to 20 V and can provide up to 300 mA of output current. It is particularly suited for high-performance analog and mixed-signal circuits, offering excellent line and load transient response, high power supply rejection ratio (PSRR), and low noise characteristics.

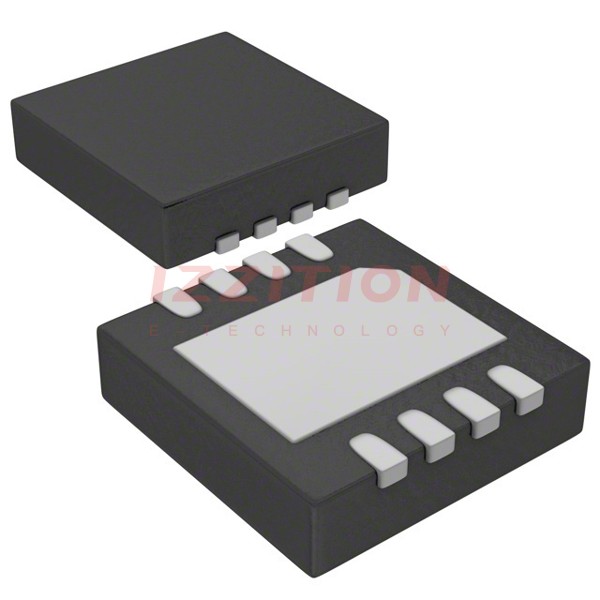

The ADP7102ACPZ-R7 is available in an 8-lead, 3 mm × 3 mm LFCSP (Wafer Level Chip Scale Package) with an exposed pad, which provides a compact solution and excellent thermal performance.

Key Specifications

Parameter Value Unit
Manufacturer Analog Devices Inc.
Part Number ADP7102ACPZ-R7
Package / Case 8-WFDFN Exposed Pad, CSP
Input Voltage Range 3.3 V to 20 V V
Output Voltage Range 1.22 V to 19.8 V (Adjustable) V
Max Output Current 300 mA mA
Quiescent Current 900 μA μA
Dropout Voltage 200 mV @ 300 mA mV
PSRR 80 dB ~ 50 dB (10 kHz ~ 100 kHz) dB
Operating Temperature -40°C to 125°C °C
Protection Features Over Current, Over Temperature, Reverse Polarity
Control Features Enable, Power Good, Under Voltage Lockout

Key Features

  • High Input Voltage Range: Operates from 3.3 V to 20 V.
  • Low Dropout Voltage: 200 mV at 300 mA load.
  • High PSRR: 80 dB ~ 50 dB (10 kHz ~ 100 kHz).
  • Low Noise: 15 μV rms output noise voltage.
  • Adjustable Output Voltage: Output voltages range from 1.22 V to VIN - VDO via an external feedback divider.
  • Digital Power-Good Output: Allows power system monitors to check the health of the output voltage.
  • User Programmable Precision Undervoltage Lockout: Facilitates sequencing of multiple power supplies.
  • Compact Package: 8-lead, 3 mm × 3 mm LFCSP with an exposed pad for excellent thermal performance.
  • Protection Features: Over current, over temperature, and reverse polarity protection.

Applications

  • High-Performance Analog and Mixed-Signal Circuits: Ideal for regulating high-performance analog and mixed-signal circuits operating from 1.22 V to 19 V rails.
  • Industrial and Medical Devices: Suitable for use in industrial and medical devices requiring stable and low-noise power supply.
  • Automotive Systems: Can be used in automotive systems due to its wide operating temperature range and robust protection features.
  • Communication Equipment: Applicable in communication equipment where high PSRR and low noise are critical.

Q & A

  1. What is the input voltage range of the ADP7102ACPZ-R7?

    The input voltage range is from 3.3 V to 20 V.

  2. What is the maximum output current of the ADP7102ACPZ-R7?

    The maximum output current is 300 mA.

  3. What is the quiescent current of the ADP7102ACPZ-R7?

    The quiescent current is 900 μA.

  4. What is the dropout voltage of the ADP7102ACPZ-R7 at 300 mA load?

    The dropout voltage is 200 mV at 300 mA load.

  5. What is the PSRR of the ADP7102ACPZ-R7?

    The PSRR is 80 dB ~ 50 dB (10 kHz ~ 100 kHz).

  6. What are the protection features of the ADP7102ACPZ-R7?

    The protection features include over current, over temperature, and reverse polarity protection.

  7. What is the operating temperature range of the ADP7102ACPZ-R7?

    The operating temperature range is -40°C to 125°C.

  8. What is the package type of the ADP7102ACPZ-R7?

    The package type is 8-lead, 3 mm × 3 mm LFCSP with an exposed pad.

  9. Does the ADP7102ACPZ-R7 have a digital power-good output?

    Yes, it has a digital power-good output to check the health of the output voltage.

  10. Can the output voltage of the ADP7102ACPZ-R7 be adjusted?

    Yes, the output voltage can be adjusted via an external feedback divider.

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):1.22V
Voltage - Output (Max):19.675V
Voltage Dropout (Max):0.325V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):900 µA
Current - Supply (Max):1.4 mA
PSRR:80dB ~ 50dB (10kHz ~ 100kHz)
Control Features:Enable, Power Good, Under Voltage Lockout
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad, CSP
Supplier Device Package:8-LFCSP-WD (3x3)
