Overview
The ADP170AUJZ-1.2-R7 is a low voltage input, low quiescent current, low-dropout (LDO) linear regulator produced by Analog Devices Inc. This component is part of the ADP170 series, which is designed to operate from an input voltage range of 1.6 V to 3.6 V. The ADP170AUJZ-1.2-R7 is specifically configured to provide a fixed output voltage of 1.2 V. It is ideal for battery-operated portable equipment due to its low quiescent current of 23 µA at a 0 mA load and a low dropout voltage of 66 mV at 300 mA load, enhancing efficiency and allowing operation over a wide input voltage range.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Input Voltage Range | 1.6 to 3.6 | V |
| Output Voltage | 1.2 | V |
| Output Current | Up to 300 | mA |
| Quiescent Current | 23 | µA |
| Dropout Voltage | 66 | mV |
| Output Voltage Accuracy | ±1% | |
| PSRR at 10 kHz | 70 dB | |
| Output Noise at VOUT = 0.8 V | 30 µV rms | |

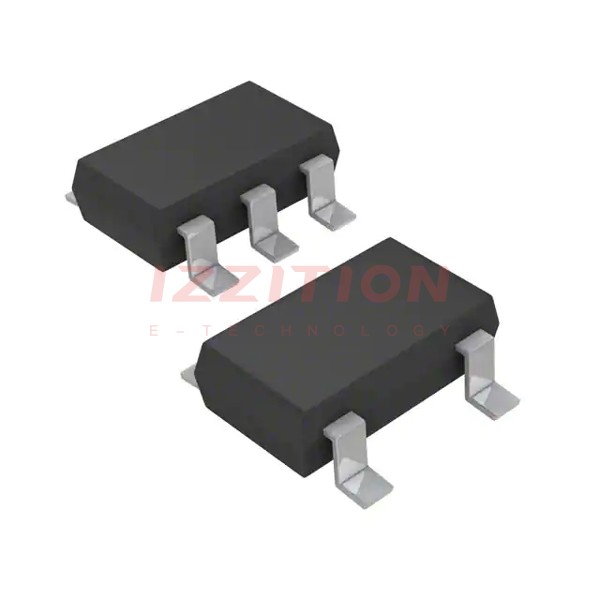

| Package Type | TSOT-5L |
Key Features
- Low quiescent current of 23 µA at 0 mA load, making it suitable for battery-operated devices.
- Low dropout voltage of 66 mV at 300 mA load, improving efficiency.
- High power supply rejection ratio (PSRR) of 70 dB at 10 kHz and 73 dB at 1 kHz.
- Low output noise of 30 µV rms at VOUT = 0.8 V.
- Current limit and thermal overload protection for reliability.
- Logic-controlled enable feature.
- Compact 5-lead TSOT package for minimal board space.
- Stable operation with small 1 µF ceramic output capacitors.
Applications
- Mobile phones
- Digital cameras and audio devices
- Portable and battery-powered equipment
- DSP/FPGA/microprocessor supplies
- Post dc-dc regulation
Q & A
- What is the input voltage range of the ADP170AUJZ-1.2-R7?
The input voltage range is from 1.6 V to 3.6 V.
- What is the fixed output voltage of the ADP170AUJZ-1.2-R7?
The fixed output voltage is 1.2 V.
- What is the maximum output current of the ADP170AUJZ-1.2-R7?
The maximum output current is up to 300 mA.
- What is the quiescent current of the ADP170AUJZ-1.2-R7 at a 0 mA load?
The quiescent current is 23 µA.
- What is the dropout voltage of the ADP170AUJZ-1.2-R7 at 300 mA load?
The dropout voltage is 66 mV.
- What is the power supply rejection ratio (PSRR) of the ADP170AUJZ-1.2-R7 at 10 kHz?
The PSRR is 70 dB.
- What is the output noise of the ADP170AUJZ-1.2-R7 at VOUT = 0.8 V?
The output noise is 30 µV rms.
- What type of package does the ADP170AUJZ-1.2-R7 come in?
The package type is TSOT-5L.
- Does the ADP170AUJZ-1.2-R7 have built-in protection features?
Yes, it includes current limit and thermal overload protection.
- Is the ADP170AUJZ-1.2-R7 suitable for battery-operated devices?
Yes, it is suitable due to its low quiescent current and low dropout voltage.
