Overview

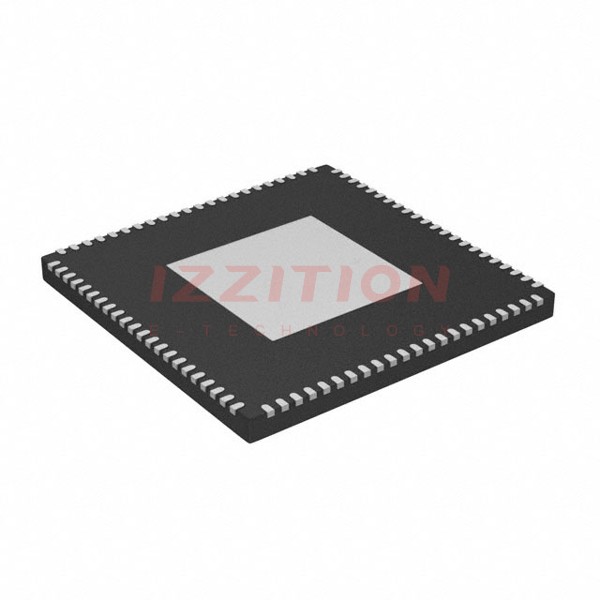

The ADN4612ACPZ is a 12 × 12 asynchronous, protocol-agnostic digital crosspoint switch produced by Analog Devices Inc. This component is designed to handle high-speed data transmission with differential PECL-/CML-compatible inputs and differential CML outputs. It is optimized for nonreturn-to-zero (NRZ) signaling and supports data rates up to 11.3 Gbps per port. The ADN4612 features low latency, very low channel-to-channel skew, and is packaged in an 88-lead Lead Frame Chip Scale Package (LFCSP), operating over a temperature range of −40°C to +85°C.
Key Specifications
| Parameter | Value |
|---|---|
| Data Rate | Up to 11.3 Gbps per port |
| Input Compatibility | Differential PECL-/CML-compatible |
| Output Type | Differential CML |
| Switch Matrix | 12 × 12 crossbar |
| Equalization | Programmable input equalization, 6-tap programmable transmit feedforward equalization (FFE) |
| Power Supply | VCC to VEE: 2.75 V, DVCC to VEE: 2.0 V |
| Temperature Range | −40°C to +85°C |
| Package Type | 88-lead LFCSP |
| Internal Power Dissipation | 4.9 W |
| Junction Temperature | 125°C |
Key Features
- DC to 11.3 Gbps per port, NRZ data rate
- Multitime constant, programmable receive equalization
- Compensates for signal degradation over long cables (e.g., 25 inches of FR408 at 10.3125 Gbps, 15 inches of FR408 at 11.3 Gbps)
- 6-tap programmable transmit feedforward equalization (FFE)
- Programmable output swing and output preemphasis/deemphasis
- Loss of signal (LOS) detection
- Low latency and very low channel-to-channel skew
- Serial control interface (SPI/I2C)
Applications
- SONET OC-192/STM-64x
- Fibre Channel (1×, 2×, 4×, 8×, and 10×)
- High-speed data centers and networking equipment
- Telecommunication systems
- High-performance computing and storage systems
Q & A
- What is the maximum data rate supported by the ADN4612? The ADN4612 supports data rates up to 11.3 Gbps per port.
- What type of inputs and outputs does the ADN4612 have? The ADN4612 has differential PECL-/CML-compatible inputs and differential CML outputs.
- What is the temperature range for the ADN4612? The ADN4612 operates over a temperature range of −40°C to +85°C.
- What is the package type of the ADN4612? The ADN4612 is packaged in an 88-lead Lead Frame Chip Scale Package (LFCSP).
- Does the ADN4612 support programmable equalization? Yes, the ADN4612 supports programmable input equalization and 6-tap programmable transmit feedforward equalization (FFE).
- What are some common applications for the ADN4612? Common applications include SONET OC-192/STM-64x, Fibre Channel, high-speed data centers, telecommunication systems, and high-performance computing and storage systems.
- How does the ADN4612 handle signal degradation over long cables? The ADN4612 compensates for signal degradation over long cables through its programmable receive equalization.
- What is the internal power dissipation of the ADN4612? The internal power dissipation of the ADN4612 is 4.9 W.
- Does the ADN4612 support loss of signal detection? Yes, the ADN4612 supports loss of signal (LOS) detection.
- What control interface does the ADN4612 use? The ADN4612 uses a serial control interface (SPI/I2C).
