Overview

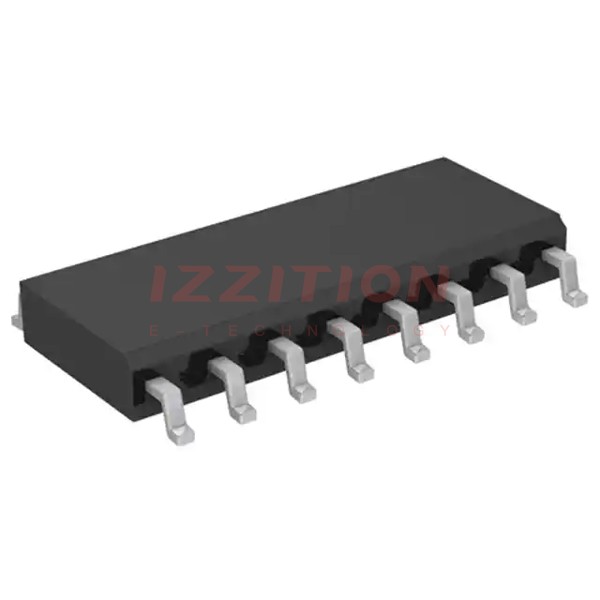

The ADM202JRNZ-REEL7 is a high-performance RS232 transceiver integrated circuit manufactured by Analog Devices Inc. This device is designed to meet the requirements of the RS232 standard, providing reliable and efficient serial communication. It is packaged in a 16-pin SOIC (Small Outline Integrated Circuit) package, making it suitable for a variety of applications where space is a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | ADM202JRNZ-REEL7 |
| Package Type | SOIC-16 |
| Voltage Supply | 5V |
| ESD Protection | 15kV |
| Compliance | RS232 |
| Operating Temperature | -40°C to 85°C |
| RoHS Compliance | Yes |
Key Features
- High-speed data transmission up to 230 kbps
- 15kV ESD protection on all RS232 pins
- Low power consumption
- Meets all RS232 specifications
- Operates over a wide temperature range (-40°C to 85°C)
- Compact SOIC-16 package
Applications
The ADM202JRNZ-REEL7 is versatile and can be used in various applications, including:
- Industrial control systems
- Point-of-sale terminals
- Medical devices
- Automotive systems
- Telecommunications equipment
Q & A
- What is the ADM202JRNZ-REEL7 used for? The ADM202JRNZ-REEL7 is a RS232 transceiver IC used for serial communication in various electronic systems.
- What is the package type of the ADM202JRNZ-REEL7? The ADM202JRNZ-REEL7 is packaged in a 16-pin SOIC package.
- What is the voltage supply for the ADM202JRNZ-REEL7? The ADM202JRNZ-REEL7 operates on a 5V voltage supply.
- Does the ADM202JRNZ-REEL7 have ESD protection? Yes, the ADM202JRNZ-REEL7 has 15kV ESD protection on all RS232 pins.
- Is the ADM202JRNZ-REEL7 RoHS compliant? Yes, the ADM202JRNZ-REEL7 is RoHS compliant.
- What is the operating temperature range of the ADM202JRNZ-REEL7? The operating temperature range is -40°C to 85°C.
- What are some common applications of the ADM202JRNZ-REEL7? Common applications include industrial control systems, point-of-sale terminals, medical devices, automotive systems, and telecommunications equipment.
- What is the maximum data transmission speed of the ADM202JRNZ-REEL7? The maximum data transmission speed is up to 230 kbps.
- Where can I find more detailed specifications for the ADM202JRNZ-REEL7? Detailed specifications can be found in the datasheet available on the manufacturer’s website or through distributors like Digi-Key, Mouser, and LCSC.
- Is the ADM202JRNZ-REEL7 suitable for high-speed applications? Yes, the ADM202JRNZ-REEL7 is suitable for high-speed applications due to its ability to transmit data up to 230 kbps.
