Overview

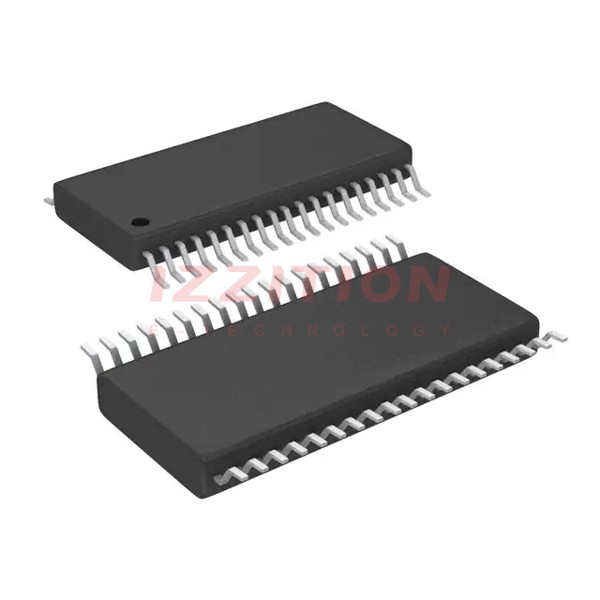

The ADG3247BRUZ-REEL is a high-performance, 4-channel, 2:1 multiplexer/demultiplexer switch produced by Analog Devices Inc. This integrated circuit is designed to provide low on-resistance and high switching speeds, making it suitable for a variety of high-frequency and low-voltage applications.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Propagation Delay Time | 225 ps |
| Minimum Operating Temperature | -40°C |
Key Features
- Low on-resistance for minimal signal attenuation.
- High switching speeds with a propagation delay time of 225 ps.
- Operates over a wide supply voltage range from 2.3 V to 3.6 V.
- 4-channel, 2:1 multiplexer/demultiplexer configuration.
- Robust performance in low-voltage and high-frequency applications.
Applications
- High-frequency signal switching in telecommunications and data communication systems.
- Low-voltage applications in consumer electronics and portable devices.
- Audio and video signal routing.
- Medical and industrial instrumentation.
Q & A
- What is the ADG3247BRUZ-REEL used for? The ADG3247BRUZ-REEL is a 4-channel, 2:1 multiplexer/demultiplexer switch used for high-frequency and low-voltage signal switching applications.
- What is the supply voltage range of the ADG3247BRUZ-REEL? The supply voltage range is from 2.3 V to 3.6 V.
- What is the propagation delay time of the ADG3247BRUZ-REEL? The propagation delay time is 225 ps.
- What is the minimum operating temperature of the ADG3247BRUZ-REEL? The minimum operating temperature is -40°C.
- Is the ADG3247BRUZ-REEL suitable for high-frequency applications? Yes, it is designed for high-frequency applications due to its low on-resistance and high switching speeds.
- Can the ADG3247BRUZ-REEL be used in audio and video signal routing? Yes, it can be used for audio and video signal routing due to its low signal attenuation and high switching speeds.
- What types of industries use the ADG3247BRUZ-REEL? It is used in telecommunications, consumer electronics, medical, and industrial instrumentation.
- Is the ADG3247BRUZ-REEL available in reel packaging? Yes, the ADG3247BRUZ-REEL is available in reel packaging.
- Who is the manufacturer of the ADG3247BRUZ-REEL? The manufacturer is Analog Devices Inc.
- Where can I purchase the ADG3247BRUZ-REEL? It can be purchased from distributors such as Digi-Key, Mouser, and other authorized distributors.
