Overview

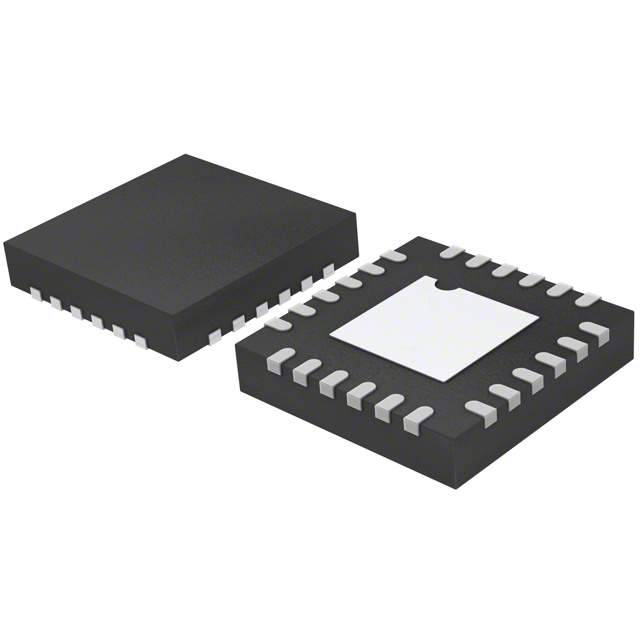

The ADG3246BCPZ-REEL7 is a 2.5 V/3.3 V, 10-bit, 2-port level translating bus switch produced by Analog Devices Inc. This component is designed to facilitate high-speed data transfer and level translation between different voltage domains. It is packaged in a 24-lead Lead Frame Chip Scale Package (LFCSP) with an exposed pad, which enhances thermal performance and reduces the overall footprint of the device.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 10 |
| Supply Voltage | 2.5 V / 3.3 V |
| Package Type | 24-Lead LFCSP (4x4 mm) |
| Operating Temperature | -40°C to +85°C |
| On Resistance | Typically 5 Ω |
| Propagation Delay | Typically 0.25 ns |
| Compliance | RoHS Compliant |
Key Features
- High-speed data transfer with low propagation delay (typically 0.25 ns)
- Low on resistance (typically 5 Ω) for minimal signal distortion
- Level translation between 2.5 V and 3.3 V domains
- Compact 24-lead LFCSP package with exposed pad for improved thermal performance
- RoHS compliant
Applications
The ADG3246BCPZ-REEL7 is suitable for a variety of applications requiring high-speed data transfer and level translation, such as:
- Data acquisition systems
- High-speed digital interfaces (e.g., USB, PCIe)
- Telecommunication systems
- Embedded systems requiring voltage domain translation
Q & A
- What is the primary function of the ADG3246BCPZ-REEL7?
The primary function is to act as a 10-bit, 2-port level translating bus switch, enabling high-speed data transfer between different voltage domains. - What are the supply voltage options for this component?
The component operates with supply voltages of 2.5 V and 3.3 V. - What is the package type of the ADG3246BCPZ-REEL7?
The component is packaged in a 24-lead Lead Frame Chip Scale Package (LFCSP) with an exposed pad. - What is the typical on resistance of the ADG3246BCPZ-REEL7?
The typical on resistance is 5 Ω. - Is the ADG3246BCPZ-REEL7 RoHS compliant?
Yes, the component is RoHS compliant. - What is the operating temperature range of the ADG3246BCPZ-REEL7?
The operating temperature range is -40°C to +85°C. - What are some common applications for the ADG3246BCPZ-REEL7?
Common applications include data acquisition systems, high-speed digital interfaces, telecommunication systems, and embedded systems requiring voltage domain translation. - How many bits does the ADG3246BCPZ-REEL7 support?
The component supports 10 bits. - What is the typical propagation delay of the ADG3246BCPZ-REEL7?
The typical propagation delay is 0.25 ns. - Why is the exposed pad in the LFCSP package important?
The exposed pad enhances thermal performance and reduces the overall footprint of the device.
