Overview

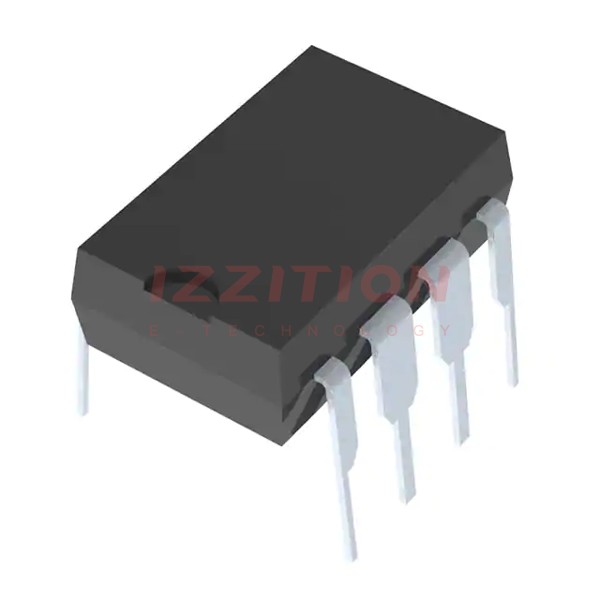

The ADEL2020ANZ is a high-performance operational amplifier produced by Analog Devices Inc. This device is part of the current feedback amplifier family and is known for its high bandwidth and low distortion characteristics. It is packaged in an 8-pin PDIP (Plastic Dual In-Line Package) and is RoHS compliant, making it suitable for a wide range of applications where environmental regulations are a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Circuits | 1 |
| Package Type | 8-PDIP |
| Bandwidth | 90 MHz |
| Slew Rate | 500 V/μs |
| Input Bias Current | 1 μA |
| Operating Temperature Range | -40°C to 85°C |
| RoHS Status | RoHS3 Compliant |
| Offset Voltage | 7.5 mV |
Key Features
- High bandwidth of 90 MHz, making it suitable for high-frequency applications.
- High slew rate of 500 V/μs, which is beneficial for applications requiring fast signal transitions.
- Low input bias current of 1 μA, reducing the impact on the input signal.
- Wide operating temperature range from -40°C to 85°C, ensuring reliability in various environmental conditions.
- RoHS3 compliance, adhering to environmental regulations.
Applications
The ADEL2020ANZ is versatile and can be used in a variety of applications, including:
- High-frequency signal processing and amplification.
- Video and audio signal processing.
- Medical equipment where high accuracy and low noise are critical.
- Industrial control systems requiring high reliability and performance.
- Telecommunication systems where fast signal handling is necessary.
Q & A
- What is the bandwidth of the ADEL2020ANZ?
The bandwidth of the ADEL2020ANZ is 90 MHz. - What is the slew rate of the ADEL2020ANZ?
The slew rate of the ADEL2020ANZ is 500 V/μs. - What is the input bias current of the ADEL2020ANZ?
The input bias current of the ADEL2020ANZ is 1 μA. - What is the operating temperature range of the ADEL2020ANZ?
The operating temperature range of the ADEL2020ANZ is -40°C to 85°C. - Is the ADEL2020ANZ RoHS compliant?
Yes, the ADEL2020ANZ is RoHS3 compliant. - What is the package type of the ADEL2020ANZ?
The package type of the ADEL2020ANZ is 8-PDIP. - What is the offset voltage of the ADEL2020ANZ?
The offset voltage of the ADEL2020ANZ is 7.5 mV. - In what types of applications is the ADEL2020ANZ commonly used?
The ADEL2020ANZ is commonly used in high-frequency signal processing, video and audio signal processing, medical equipment, industrial control systems, and telecommunication systems. - Where can I find detailed specifications for the ADEL2020ANZ?
Detailed specifications for the ADEL2020ANZ can be found on the datasheet available from sources like Mouser Electronics, Digi-Key, and the official Analog Devices website. - Is the ADEL2020ANZ suitable for high-frequency applications?
Yes, the ADEL2020ANZ is highly suitable for high-frequency applications due to its high bandwidth and slew rate.
