Overview

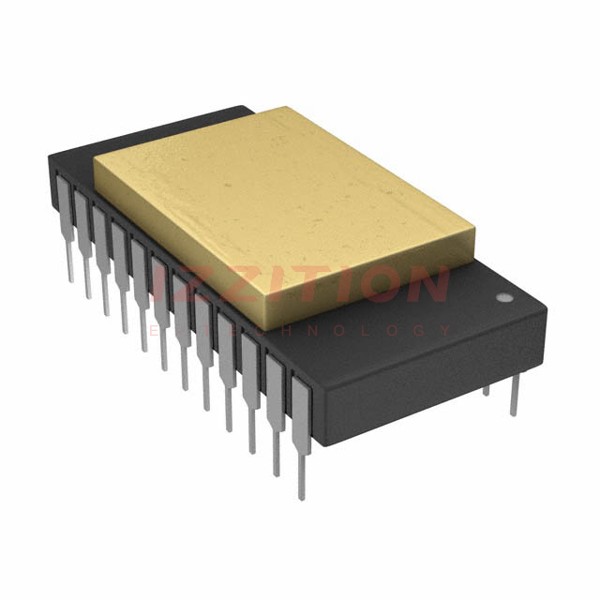

The ADDAC85MILCBIV8 is a 12-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the ADDAC80/ADDAC85/ADDAC87 family, known for their low cost and high performance. The ADDAC85MILCBIV8 is designed for applications requiring precise analog signal generation from digital inputs.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Type | Digital-to-Analog (DAC) |
| Operating Temperature Range | –55°C to +125°C |
| Accuracy | ±1/2 LSB |
| Package Type | DH-24A (Hybrid) |
Key Features
- High resolution of 12 bits, providing precise analog signal generation.
- Wide operating temperature range from –55°C to +125°C, making it suitable for harsh environments.
- Low cost, making it an economical choice for various applications.
- Hybrid package (DH-24A) for robust and reliable performance.
- High accuracy with ±1/2 LSB, ensuring reliable and consistent output.
Applications
- Data acquisition systems: For converting digital data into precise analog signals.
- Industrial control systems: For generating control signals in industrial environments.
- Aerospace and defense: Due to its wide operating temperature range and high reliability.
- Medical devices: Where precise analog signal generation is critical.
- Automotive systems: For various control and monitoring applications.
Q & A
- What is the resolution of the ADDAC85MILCBIV8? The resolution is 12 bits.
- What is the operating temperature range of the ADDAC85MILCBIV8? The operating temperature range is from –55°C to +125°C.
- What type of conversion does the ADDAC85MILCBIV8 perform? It performs digital-to-analog (DAC) conversion.
- What is the accuracy of the ADDAC85MILCBIV8? The accuracy is ±1/2 LSB.
- What is the package type of the ADDAC85MILCBIV8? The package type is DH-24A (Hybrid).
- Where can the ADDAC85MILCBIV8 be used? It can be used in data acquisition systems, industrial control systems, aerospace and defense, medical devices, and automotive systems.
- Why is the ADDAC85MILCBIV8 considered economical? It is considered economical due to its low cost while maintaining high performance.
- What makes the ADDAC85MILCBIV8 suitable for harsh environments? Its wide operating temperature range makes it suitable for harsh environments.
- How precise is the analog signal generation of the ADDAC85MILCBIV8? The analog signal generation is highly precise with an accuracy of ±1/2 LSB.
- Can the ADDAC85MILCBIV8 be used in medical devices? Yes, it can be used in medical devices where precise analog signal generation is critical.
