Overview
The ADCMP380-1ACBZ-RL7 is an ultralow power voltage comparator produced by Analog Devices Inc. This component is designed for general-purpose applications and is notable for its low power consumption and precision low voltage monitoring capabilities. The ADCMP380 series includes an internal reference, making it a versatile choice for various electronic systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | ADCMP380-1ACBZ-RL7 |

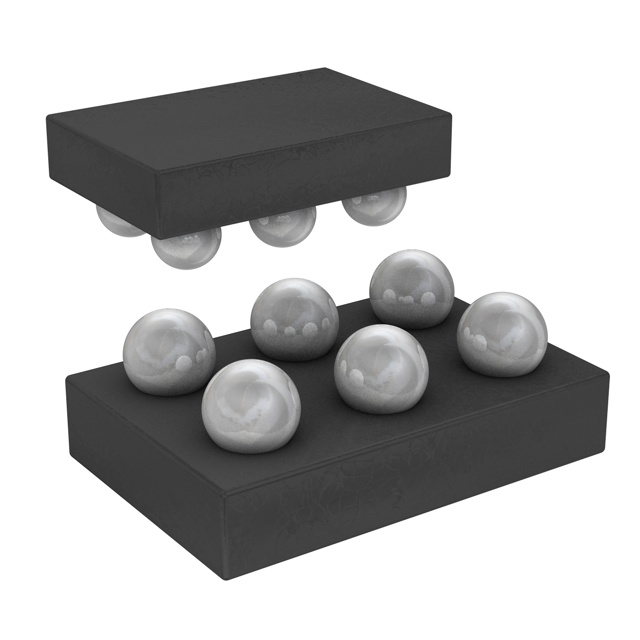

| Package | 6-WFBGA, WLCSP |
| Number of Pins | 6 |
| Propagation Delay | 35 μs (typical) |
| Power Consumption (ICC) | 92 nA (typical) |
| Operating Temperature Range | -40°C to 85°C |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Comparator with on-chip reference
- Ultralow power consumption with ICC = 92 nA (typical)
- Precision low voltage monitoring
- Internal reference for simplified design
- Compact 6-WFBGA and WLCSP packages
- Wide operating temperature range: -40°C to 85°C
- ROHS3 Compliant and lead-free
Applications
The ADCMP380-1ACBZ-RL7 is suitable for a variety of general-purpose applications, including but not limited to:
- Precision low voltage monitoring in battery-powered devices
- Automotive systems requiring low power and high reliability
- Industrial control systems where low power consumption is critical
- Medical devices that require precise voltage monitoring
- Consumer electronics where space and power efficiency are important
Q & A
- What is the typical power consumption of the ADCMP380-1ACBZ-RL7?
The typical power consumption is 92 nA. - What is the propagation delay of the ADCMP380-1ACBZ-RL7?
The propagation delay is 35 μs (typical). - What is the operating temperature range of the ADCMP380-1ACBZ-RL7?
The operating temperature range is -40°C to 85°C. - Is the ADCMP380-1ACBZ-RL7 ROHS compliant?
Yes, it is ROHS3 Compliant. - What type of package does the ADCMP380-1ACBZ-RL7 come in?
The component comes in 6-WFBGA and WLCSP packages. - Does the ADCMP380-1ACBZ-RL7 have an internal reference?
Yes, it includes an internal reference. - What is the moisture sensitivity level (MSL) of the ADCMP380-1ACBZ-RL7?
The MSL is 1 (Unlimited). - What are some common applications for the ADCMP380-1ACBZ-RL7?
Common applications include precision low voltage monitoring in battery-powered devices, automotive systems, industrial control systems, medical devices, and consumer electronics. - Is the ADCMP380-1ACBZ-RL7 lead-free?
Yes, it is lead-free and ROHS compliant. - Where can I find the datasheet for the ADCMP380-1ACBZ-RL7?
The datasheet can be found on the official Analog Devices website or through distributors like Digi-Key and Farnell.
