Overview

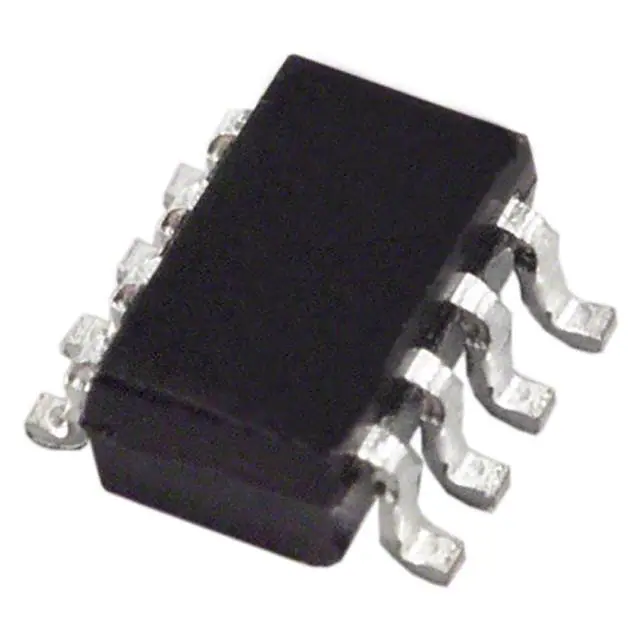

The ADCMP341YRJZ-REEL7 is a dual comparator with a built-in reference and programmable hysteresis, manufactured by Analog Devices Inc. This component is designed to provide high accuracy and reliability in various comparison applications. It is packaged in a compact SOT-23-8 package, making it suitable for space-constrained designs. The ADCMP341YRJZ-REEL7 is particularly useful in systems that require precise voltage comparisons with adjustable hysteresis to prevent oscillations.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Comparators | 2 |
| Comparator Type | Open-Collector |
| Propagation Delay | 800 ns (typical) |
| Supply Voltage | 2.5 V to 5.5 V |
| Operating Temperature | -40°C to 125°C |
| Package Type | SOT-23-8 |
| Hysteresis | Programmable |
| Reference Voltage | Internal Reference |
Key Features
- Dual comparators with open-collector outputs
- Internal reference voltage
- Programmable hysteresis to prevent oscillations
- Low propagation delay of 800 ns (typical)
- Wide supply voltage range: 2.5 V to 5.5 V
- Compact SOT-23-8 package
- Operating temperature range: -40°C to 125°C
Applications
- Voltage monitoring and detection in power supplies and battery management systems
- Threshold detection in industrial control systems
- Signal conditioning and processing in medical devices
- Automotive systems requiring precise voltage comparisons
- General-purpose comparator applications in consumer electronics
Q & A
- What is the package type of the ADCMP341YRJZ-REEL7? The ADCMP341YRJZ-REEL7 is packaged in a SOT-23-8 package.
- What is the typical propagation delay of the ADCMP341YRJZ-REEL7? The typical propagation delay is 800 ns.
- What is the supply voltage range for the ADCMP341YRJZ-REEL7? The supply voltage range is from 2.5 V to 5.5 V.
- Does the ADCMP341YRJZ-REEL7 have an internal reference voltage? Yes, it has an internal reference voltage.
- Can the hysteresis of the ADCMP341YRJZ-REEL7 be programmed? Yes, the hysteresis is programmable.
- What is the operating temperature range of the ADCMP341YRJZ-REEL7? The operating temperature range is from -40°C to 125°C.
- How many comparators are included in the ADCMP341YRJZ-REEL7? The ADCMP341YRJZ-REEL7 includes two comparators.
- What type of outputs do the comparators have? The comparators have open-collector outputs.
- In what types of applications is the ADCMP341YRJZ-REEL7 commonly used? It is commonly used in voltage monitoring, threshold detection, signal conditioning, and other general-purpose comparator applications.
- Where can I find detailed specifications for the ADCMP341YRJZ-REEL7? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser Electronics.
