Overview
The ADAR7251WBCSZ-RL is a high-performance, 4-channel, quad analog-to-digital converter (ADC) produced by Analog Devices Inc. This Delta-Sigma ADC is designed for precision measurement and data acquisition applications, offering a high level of accuracy and reliability. The device operates at a sampling rate of 1.8 Msps and features a 16-bit resolution, making it suitable for a wide range of industrial, medical, and automotive applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Resolution | 16 bits |
| Sampling Rate | 1.8 Msps |

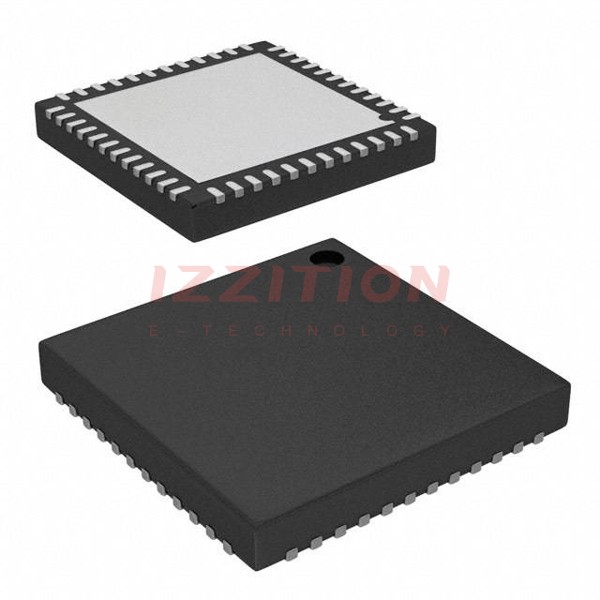

| Package Type | 48-Lead LFCSP (7mm x 7mm w/ EP) |
| Operating Temperature Range | -40°C to +125°C |
| Interface | Parallel |
Key Features
- High accuracy and low noise floor, making it ideal for precision measurement applications.
- Delta-Sigma architecture for high resolution and dynamic range.
- Support for multiple power modes to optimize power consumption.
- Integrated digital filters and decimation options.
- Compact 48-Lead LFCSP package for space-efficient designs.
Applications
- Industrial automation and control systems.
- Medical devices, such as patient monitoring and diagnostic equipment.
- Automotive systems, including sensor interfaces and data acquisition.
- Aerospace and defense applications requiring high reliability and precision.
- Test and measurement equipment.
Q & A
- What is the resolution of the ADAR7251WBCSZ-RL ADC? The ADAR7251WBCSZ-RL has a resolution of 16 bits.
- What is the sampling rate of the ADAR7251WBCSZ-RL? The sampling rate is 1.8 Msps.
- How many channels does the ADAR7251WBCSZ-RL support? It supports 4 channels.
- What is the operating temperature range of the ADAR7251WBCSZ-RL? The operating temperature range is -40°C to +125°C.
- What type of package does the ADAR7251WBCSZ-RL come in? It comes in a 48-Lead LFCSP package.
- What is the interface type of the ADAR7251WBCSZ-RL? The interface is parallel.
- Is the ADAR7251WBCSZ-RL suitable for medical applications? Yes, it is suitable for medical devices due to its high accuracy and reliability.
- Can the ADAR7251WBCSZ-RL be used in automotive systems? Yes, it can be used in automotive systems for sensor interfaces and data acquisition.
- Does the ADAR7251WBCSZ-RL have integrated digital filters? Yes, it has integrated digital filters and decimation options.
- What are the power modes supported by the ADAR7251WBCSZ-RL? It supports multiple power modes to optimize power consumption.
