Overview

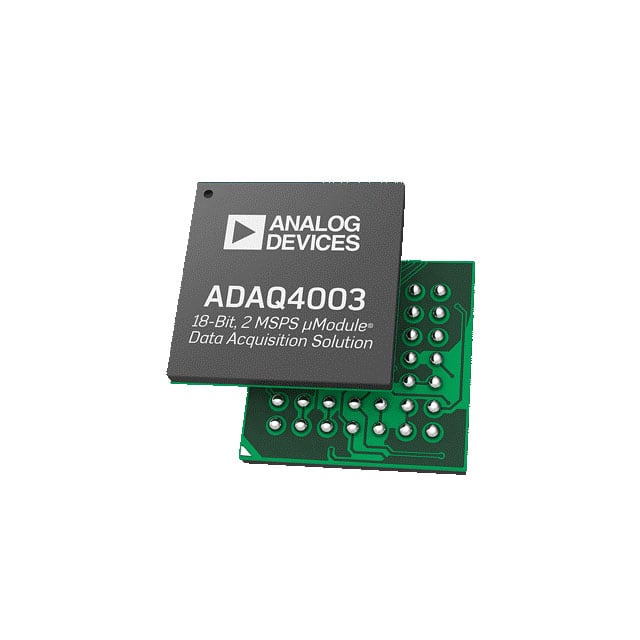

The ADAQ4003BBCZ is a high-performance, 18-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component utilizes Analog Devices' iPassives® technology, which enhances its precision and reliability. The ADAQ4003BBCZ is packaged in a 49-ball CSPBGA (7mm x 7mm) and operates over a wide temperature range from -40°C to +125°C, making it suitable for various industrial and automotive applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 18 bits |
| Conversion Type | Successive Approximation Register (SAR) |
| Number of Inputs | 1 |
| Package Type | 49-Ball CSPBGA (7mm x 7mm) |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage | See datasheet for specific voltage ranges |
Key Features
- High-resolution 18-bit SAR ADC for precise analog-to-digital conversion.
- Utilizes iPassives® technology for enhanced performance and reliability.
- Compact 49-ball CSPBGA package (7mm x 7mm) for space-efficient designs.
- Wide operating temperature range from -40°C to +125°C.
- Low power consumption, suitable for battery-powered and energy-efficient applications.
Applications
- Industrial automation and control systems.
- Automotive systems, including sensor interfaces and data acquisition.
- Medical devices, such as diagnostic equipment and patient monitoring systems.
- Aerospace and defense applications requiring high precision and reliability.
- Test and measurement equipment.
Q & A
- What is the resolution of the ADAQ4003BBCZ ADC?
The ADAQ4003BBCZ has a resolution of 18 bits. - What type of conversion does the ADAQ4003BBCZ use?
The ADAQ4003BBCZ uses successive approximation register (SAR) conversion. - How many inputs does the ADAQ4003BBCZ have?
The ADAQ4003BBCZ has one input. - What is the package type of the ADAQ4003BBCZ?
The ADAQ4003BBCZ is packaged in a 49-ball CSPBGA (7mm x 7mm). - What is the operating temperature range of the ADAQ4003BBCZ?
The operating temperature range is from -40°C to +125°C. - What technology does the ADAQ4003BBCZ utilize?
The ADAQ4003BBCZ utilizes Analog Devices' iPassives® technology. - Is the ADAQ4003BBCZ suitable for automotive applications?
Yes, the ADAQ4003BBCZ is suitable for automotive applications due to its wide operating temperature range and high reliability. - What are some common applications of the ADAQ4003BBCZ?
Common applications include industrial automation, automotive systems, medical devices, aerospace, and test and measurement equipment. - Where can I find detailed specifications for the ADAQ4003BBCZ?
Detailed specifications can be found in the datasheet available on Analog Devices' official website and other authorized distributors like Mouser and Digi-Key. - Is the ADAQ4003BBCZ energy-efficient?
Yes, the ADAQ4003BBCZ is designed to be energy-efficient with low power consumption.
