Overview
The ADADC85SZ-10 is a 10-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) produced by Analog Devices Inc. This component is designed to offer high accuracy and reliability in various analog-to-digital conversion applications. It features a compact design and is suitable for use in a wide range of environments.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | ADADC85SZ-10 |
| Converter Type | SAR (Successive Approximation) |
| Number of Bits | 10 |
| Analog Input Voltage-Max | 10 V |
| Analog Input Voltage-Min | -10 V |
| Conversion Time-Max | 10 µs |
| Number of Analog In Channels | 1 |
| Supply Voltage-Nom | 12 V |
| Negative Supply Voltage-Nom | -12 V |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |

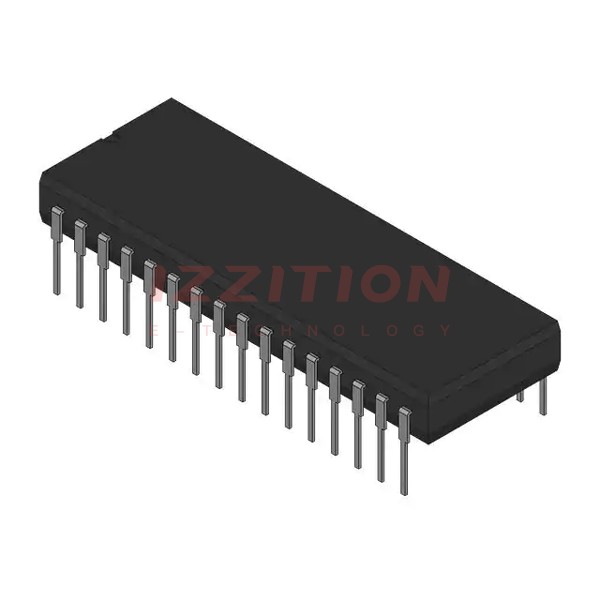

| Package Type | DIP (Dual In-Line Package) |
| Pin Count | 32 |
| Output Format | SERIAL, PARALLEL, WORD |
Key Features
- High Accuracy: The ADADC85SZ-10 offers high linearity and accuracy, making it suitable for precise analog-to-digital conversions.
- Fast Conversion Time: With a maximum conversion time of 10 µs, this ADC is ideal for applications requiring quick data acquisition.
- Flexible Output Formats: The component supports serial, parallel, and word output formats, providing versatility in system design.
- Wide Operating Temperature Range: It operates within a temperature range of -25 °C to 85 °C, making it reliable in various environmental conditions.
- Compact Design: The DIP package ensures a compact footprint, suitable for space-constrained applications.
Applications
The ADADC85SZ-10 is widely used in various applications, including:
- Industrial Automation: For monitoring and controlling industrial processes.
- Medical Devices: In medical equipment requiring precise analog-to-digital conversions.
- Aerospace and Defense: For applications in harsh environments where reliability and accuracy are crucial.
- Test and Measurement Equipment: In instruments such as oscilloscopes, multimeters, and data acquisition systems.
Q & A
- What is the resolution of the ADADC85SZ-10 ADC?
The ADADC85SZ-10 is a 10-bit ADC. - What is the maximum analog input voltage for the ADADC85SZ-10?
The maximum analog input voltage is 10 V. - What is the conversion time of the ADADC85SZ-10?
The maximum conversion time is 10 µs. - What are the supported output formats of the ADADC85SZ-10?
The component supports serial, parallel, and word output formats. - What is the operating temperature range of the ADADC85SZ-10?
The operating temperature range is from -25 °C to 85 °C. - What is the package type of the ADADC85SZ-10?
The package type is DIP (Dual In-Line Package). - How many pins does the ADADC85SZ-10 have?
The component has 32 pins. - What is the supply voltage for the ADADC85SZ-10?
The nominal supply voltage is 12 V, and the negative supply voltage is -12 V. - Is the ADADC85SZ-10 suitable for harsh environments?
Yes, it is suitable for use in a wide range of environments due to its robust design and wide operating temperature range. - Where can I find the datasheet for the ADADC85SZ-10?
The datasheet can be found on the official Analog Devices website or through authorized distributors.
