Overview

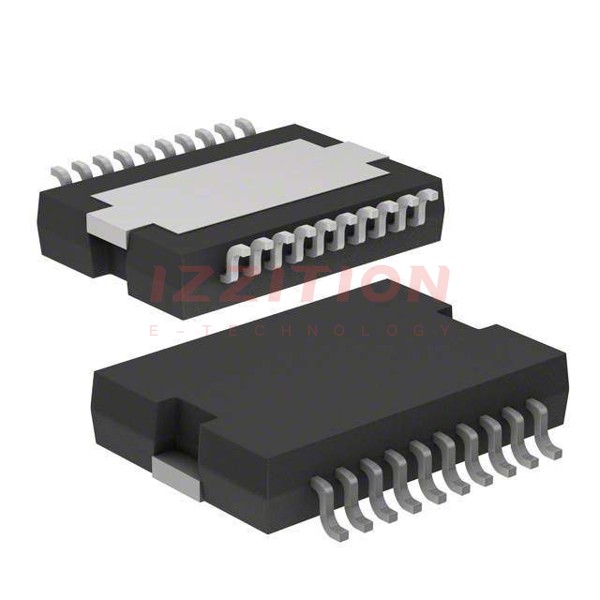

The ADA4870ARRZ-RL is a high-speed current feedback amplifier manufactured by Analog Devices Inc. This unity gain stable amplifier is designed using the proprietary high voltage extra fast complementary bipolar (XFCB) process, enabling high output power and high speed signal processing. It is particularly suited for applications requiring the drive of low impedance loads, such as high voltage power FETs, piezo transducers, PIN diodes, and CCD panels. The ADA4870ARRZ-RL operates over the industrial temperature range of −40°C to +85°C and is available in a power SOIC package (PSOP_3) with an exposed thermal slug for efficient heat transfer.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | ±20 V | V | ||
| Output Current Drive | 1 A | A | ||
| Slew Rate (Peak) | 2500 | V/μs | ||
| Settling Time to 0.1% | 82 | ns | ||
| −3 dB Bandwidth | 60 | 70 | MHz | |
| Common-Mode Rejection Ratio | 58 | 60 | dB | |
| Output Voltage Range | ±18.6 V | V | ||
| Operating Temperature Range | −40°C | +85°C | °C |
Key Features
- Unity gain stable, high speed current feedback amplifier
- Delivers 1 A of output current and 2500 V/μs slew rate from a 40 V supply
- Manufactured using the proprietary high voltage extra fast complementary bipolar (XFCB) process
- Ideal for driving high voltage power FETs, piezo transducers, PIN diodes, and CCD panels
- Available in a power SOIC package (PSOP_3) with an exposed thermal slug for efficient heat transfer
- Short-circuit protection and thermal protection
Applications
- Envelope tracking
- Power FET driver
- Ultrasound
- Piezo drivers
- PIN diode drivers
- Waveform generation
- Automated test equipment (ATE)
- CCD panel drivers
- Composite amplifiers
Q & A
- What is the ADA4870ARRZ-RL used for?
The ADA4870ARRZ-RL is used for high-speed signal processing applications that require driving low impedance loads such as high voltage power FETs, piezo transducers, PIN diodes, and CCD panels.
- What is the maximum output current of the ADA4870ARRZ-RL?
The ADA4870ARRZ-RL can deliver up to 1 A of output current.
- What is the slew rate of the ADA4870ARRZ-RL?
The slew rate of the ADA4870ARRZ-RL is 2500 V/μs.
- What is the operating temperature range of the ADA4870ARRZ-RL?
The ADA4870ARRZ-RL operates over the industrial temperature range of −40°C to +85°C.
- What package type is the ADA4870ARRZ-RL available in?
The ADA4870ARRZ-RL is available in a power SOIC package (PSOP_3) with an exposed thermal slug.
- Does the ADA4870ARRZ-RL have short-circuit protection?
- What are some typical applications of the ADA4870ARRZ-RL?
Typical applications include envelope tracking, power FET driver, ultrasound, piezo drivers, PIN diode drivers, waveform generation, automated test equipment (ATE), CCD panel drivers, and composite amplifiers.
- What is the common-mode rejection ratio of the ADA4870ARRZ-RL?
The common-mode rejection ratio of the ADA4870ARRZ-RL is typically 60 dB.
- What is the −3 dB bandwidth of the ADA4870ARRZ-RL?
The −3 dB bandwidth of the ADA4870ARRZ-RL is typically 70 MHz.
- How does the ADA4870ARRZ-RL manage heat dissipation?
The ADA4870ARRZ-RL features an exposed thermal slug in its power SOIC package, which provides high thermal conductivity for efficient heat transfer.
