Overview
The ADA4523-1BCPZ-RL7, produced by Analog Devices Inc., is a high-voltage, low-noise, zero-drift operational amplifier designed to deliver precision DC performance over a broad supply range of 4.5 V to 36 V. This op amp is notable for its low offset voltage, minimal offset voltage drift, and high immunity to electromagnetic interference (EMI). It features self-calibrating circuitry that ensures low offset voltage drift with temperature and zero drift over time, making it ideal for high dynamic range test, measurement, and instrumentation systems.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage Range | 4.5 | 36 | V | |
| Offset Voltage | ±0.5 | ±4 | ±7 | µV |
| Offset Voltage Drift | 0.01 | 0.02 | µV/°C | |
| Input Noise Voltage (0.1 Hz to 10 Hz) | 88 | nV p-p | ||
| Spectral Density Voltage Noise | 4.2 | nV/√Hz @ 1 kHz | ||
| Gain Bandwidth Product (GBP) | 5 | MHz | ||
| Slew Rate | 1.8 | V/µs | ||
| Power Supply Rejection Ratio (PSRR) | 140 | 168 | dB | |
| Common Mode Rejection Ratio (CMRR) | 160 | dB | ||
| Input Bias Current | 125 | 300 | pA | |
| Supply Current per Amplifier | 4.5 | 4.8 | mA | |
| Operating Temperature | -40 | 125 | °C | |

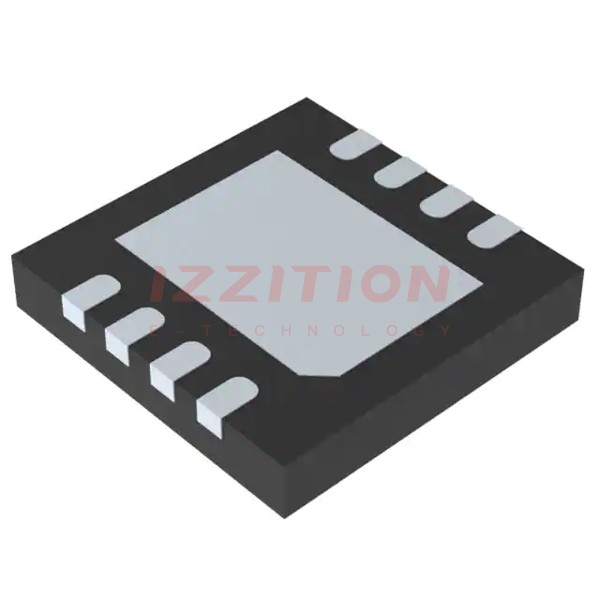

| Package/Case | 8-LFCSP (3x3) |
Key Features
- Efficient power consumption
- Precision current sourcing
- Low distortion operation
- Safe operating margin
- High speed capability
- Wide range operation
- Rail-to-rail output
- Unity-gain stable
- Integrated EMI filters
- Shutdown mode
- Ground sense
Applications
- Current monitoring
- High precision applications
- Reference circuits
- High dynamic range test and measurement systems
- Instrumentation systems
Q & A
- What is the supply voltage range of the ADA4523-1BCPZ-RL7? The supply voltage range is from 4.5 V to 36 V.
- What is the maximum offset voltage of the ADA4523-1BCPZ-RL7? The maximum offset voltage is ±4 µV at 5 V.
- What is the offset voltage drift of the ADA4523-1BCPZ-RL7? The offset voltage drift is 0.01 µV/°C maximum at 5 V.
- What is the input noise voltage of the ADA4523-1BCPZ-RL7? The input noise voltage is 88 nV p-p from 0.1 Hz to 10 Hz typical.
- Is the ADA4523-1BCPZ-RL7 RoHS compliant? Yes, the ADA4523-1BCPZ-RL7 is RoHS compliant.
- What are the available package types for the ADA4523-1BCPZ-RL7? It is available in 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP.
- What is the operating temperature range of the ADA4523-1BCPZ-RL7? The operating temperature range is from -40°C to 125°C.
- What is the gain bandwidth product (GBP) of the ADA4523-1BCPZ-RL7? The GBP is 5 MHz typical.
- Does the ADA4523-1BCPZ-RL7 have integrated EMI filters? Yes, it has integrated EMI filters.
- Is the ADA4523-1BCPZ-RL7 unity-gain stable? Yes, it is unity-gain stable.
